Klixon® 3HM series

Motor Protectors


  • /media/djcatalog2/images/item/0/klixon-3hm-series.jpg

    Manufacturer: Sensata Technologies

    Hermetically sealed motor protector for single-phase on-winding protection

    • Klixon 3HM motor protectors are line break automatic reset controls which are wired in series with the motor windings. These protectors are designed to track winding temperatures and respond to changes in line current, which provides protection against the overload conditions listed below;

      • Running overload
      • High/Low voltage locked rotor
      • High voltage light load
      • High discharge temperature
    Services
    Professional and fast quote
    Product usually available on stock

    Delivery:

    • ASK for "Just in time" delivery

    More questions?

    +39 02 3340 0846 or Contact us

    Questions?

    +39 02 3340 0846
    or Contact us

    Description

    The 3HM hermetic overload protectors are new generation product designed to meet the demands of tomorrow’s compressors. The 3HM family of motor protectors can be applied to air conditioning compressors ranging from 1 to 2½ HP. They may also be used in commercial motors which must function in high-pressure corrosive environments. Its low profile allows ease of installation, while the overall design provides resistance to mechanical shock.

    Constructions

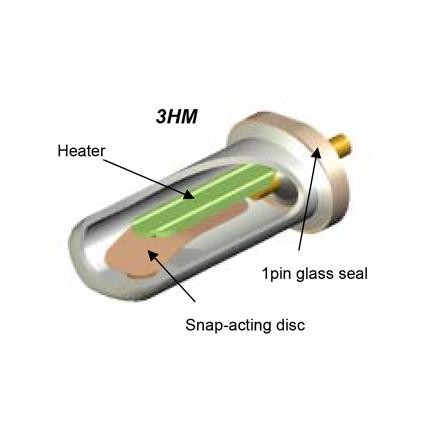

    The basic element in the hermetic motor protector series is the Klixon snap-acting disc. An integral series heater allows close control of ON times, and longer cycle rates when stalled rotor condition exists. Glass sealed header is resistant welded to the steel case to provide a hermetic seal. Optional wire leads, sleeve and terminal connector can be provided.

    Specifications

    Purpose of Control Thermal protector for motor compressor
    Rated Voltage 240 VAC
    Rated Current 16A inductive load, 80A at p/f 0.6
    Temperature Range 90°C to 175°C
    Ambient Temp. Limits Tmin=0°C / Tmax=200°C
    Tolerance on Temp. Open ±5K, Close ±11K
    Type of Disconnection Type3C
    Pollution Situation Normal
    PTI for Insulation PTI600
    Enclosure Protection Degree IP00
