LR-Series

PCB Mount AC Output SSRs

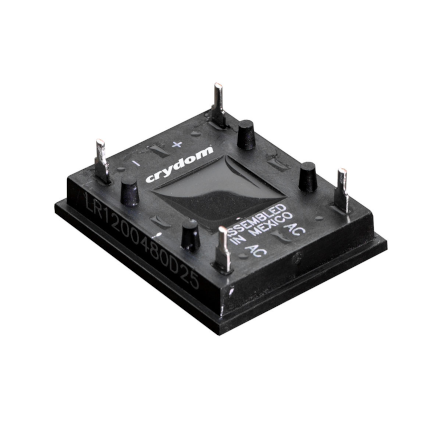

  • /media/djcatalog2/images/item/14/lr-series.png
    • NEW !
    Manufacturer: Sensata BEI Kimco

    PCB mount relays ratings up to 40 Amps at 600 VAC. UL approved and CE compliant.

      • SCR output for heavy industrial loads
      • AC or DC control
      • Zero voltage (resistive loads) or instantaneous turn-on (inductive loads) output
      • Optional mounting clip available (LMC-1)
    Services
    Professional and fast quote
    Product usually available on stock

    Delivery:

    • ASK for "Just in time" delivery

    More questions?

    +39 02 3340 0846 or Contact us

    Questions?

    +39 02 3340 0846
    or Contact us

    Description

    LR Series PCB mount relays with ratings up to 40 Amps (using external heat sink) at 600 VAC.  These solid state relays are UL approved and CE compliant.
    Additional features of the LR series SSRs include:

    • SCR output for heavy industrial loads
    • AC or DC control
    • Zero voltage (resistive loads) or instantaneous turn-on (inductive loads) output
    • Optional mounting clip available (LMC-1)
    Part Number Control Voltage Range Maximum Load Current Operating Voltage Range
    LR1200480D25 4-32 VDC 25 A 48-530 VAC
    LR1200480D25R 4-32 VDC 25 A 48-530 VAC
    LR1200480D40 4-32 VDC 40 A 48-530 VAC
    LR600240D25 4-32 VDC 25 A 24-280 VAC
    LR600240D25R 4-32 VDC 25 A 24-280 VAC
    LR600240D40 4-32 VDC 40 A 24-280 VAC
    LR600240D40R 4-32 VDC 40 A 24-280 VAC
