    Low profile linear encoder

      • Inductive system with no optics to fail or become contaminated
      • No internal moving parts
      • Fully sealed reader head to IP67
      • Carbon fibre scale construction
      • Unsurpassed shock and vibration capability
      • Simple installation
    Services
    Professional and fast quote
    Product usually available on stock

    Delivery:

    • ASK for "Just in time" delivery

    More questions?

    +39 02 3340 0846 or Contact us

    Questions?

    +39 02 3340 0846
    or Contact us

    Description

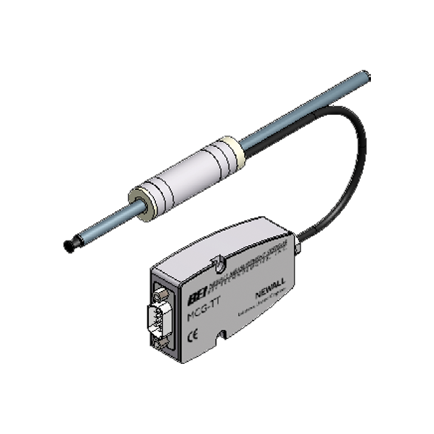

    The MCG-TT Linear Encoder provides an ultra-low encoder profile for restricted spaces without the need to sacrifice performance or environmental robustness. Having a cylindrical shape, the MCG-TT reader-head can be fitted into a bore of only 16mm in diameter offering a wide array of application possibilities.

    Features

    • Inductive system with no optics to fail or become contaminated
    • No internal moving parts
    • Fully sealed reader head to IP67
    • Carbon fibre scale construction
    • Unsurpassed shock and vibration capability
    • Simple installation

    Specifications

    Accuracy ± 5µm (± 0.0002”)
    Resolution 1µm (0.00005”)
    Output Type TTL RS422 Differential Quadrature
    Max.Traverse Rate 2 MHz (2m/s at 1µm resolution)
    Max.Acceleration / Deceleration 10g / 98m/s (head moving)
    Power Supply 5Vdc ±5% @ 80mA
    Reference Type Periodic
    Reference Location Every 5mm
    Ingress Protection Level IP67, fully submersible (IEC 529) - Exceeds NEMA 6
    Shock EN 60-068-2-27 (11ms) 980mS-2 (100g)
    Vibration EN60-068-2-6 (55... 2000Hz) 294mS-2 (30g)
    EMC BS EN 50081-2 & BS EN 50082-2
    Temperature (Storage) -20 to +70ºC
    Temperature (Operation) 0 to +55ºC
    Maximum Scale Travel 1000mm (39”)
    Maximum Single End Mount Measuring Length 305mm (12”)
    Scale Over Travel Requirements 178mm (7”)
    Cable Length 0.5m (20”)
    Connector D type 9 pin
