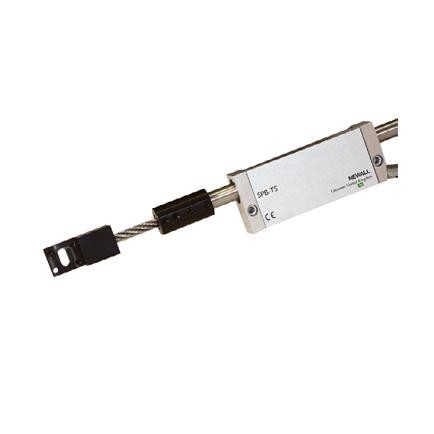

    Press brake encoder

      • Up to ±3mm allowance for radial movement due to press brake deflection
      • Inductive system with no optics to fail or become contaminated
      • Available with single or periodic reference marker
      • Patent pending self-aligning mounting mechanism
      • TTL differential quadrature output
      • Simple installation; No moving parts
      • Fully sealed, IP67 rating
      • Withstands shock and vibration
    Services
    Professional and fast quote
    Product usually available on stock

    Delivery:

    • ASK for "Just in time" delivery

    More questions?

    +39 02 3340 0846 or Contact us

    Questions?

    +39 02 3340 0846
    or Contact us

    Description

    The SPB Linear Encoders are specifically designed to meet the strenuous demands of the press brake industry. Cost-effective Encoders offer unsurpassed durability with high resistance to shock, vibration and contamination.

    Features

    • Up to ±3mm allowance for radial movement due to press brake deflection
    • Inductive system with no optics to fail or become contaminated
    • Available with single or periodic reference marker
    • Patent pending self-aligning mounting mechanism
    • TTL differential quadrature output
    • Simple installation; No moving parts
    • Fully sealed, IP67 rating
    • Withstands shock and vibration

    Specifications

    Accuracy ±10μm
    Resolution 1μm or 5μm
    Output Type TTL Differential Quadrature
    Maximum Traverse Speed 60m/minute
    Maximum Acceleration 100ms2 (10g)
    Power Supply 5VDC ±5% @ 85mA
    Reference Markers

    SPB-TS = Single

    SPB-TT = Periodic (every 12.7mm)
    Moving Force < 5N
    Environmental Rating IP67, fully submersible (IEC 529)
    Shock (11ms) 980ms2 (100g) - (EN 60-068-2-27)
    Vibration (55-2000Hz) 294ms2 (30g) - (EN 60-068-2-6)
    EMC Compliance BS EN 50081-2 and BS EN 50082-2
    Storage Temperature -4° to 158°F (-20° to +70°C)
    Operating Temperature 32° to 131°F (0° to +55°C)
    Overall Scale Length (with single end mount bracket) Measuring Length + 12.05” (306mm)
    Overall Scale Length (without single end mount bracket) Measuring Length + 10.55” (268mm)
    Mounting Alignment Tolerance ±3mm (Press closed)
