Maxtec oxygen sensors are recognized as the number one choice for sensor replacement by hospitals and equipment manufacturers worldwide. No matter the application, you can trust Maxtec sensors to provide longer life and more stable readings to keep your equipment running smoothly.

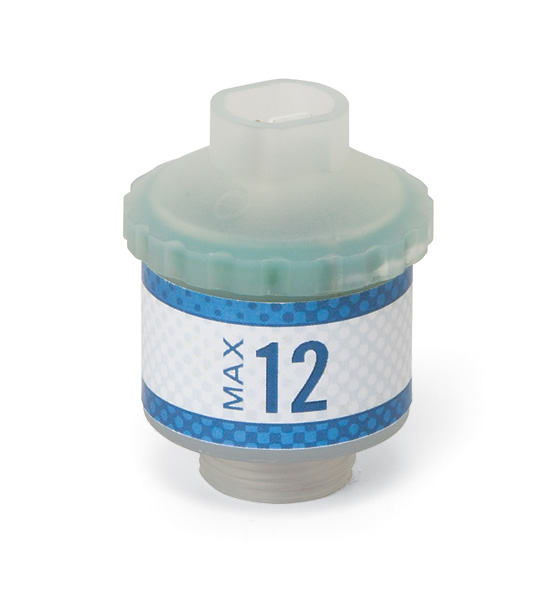

Part Number R109P45

SPECS

• Range of Measurement: 0 to 100%
• Output Range: 12.5 to 16.5 mV
• Zero Offset: ≤ 0.250 mV
• Response Time: ≤ 12 s
• Linearity: ≤ 3%
• Expected Lifetime: > 1,000,000 %O2 hours
• Temperature Compensation: NTC
• Operational Temperature Range: 10˚ to 40˚C
• Storage Temperature Range: -20˚ to 50˚C
• Humidity Range: 0% to 90% RH, non-condensing
• Ambient Pressure Range: 700-1250 mbar
• Interference: PER EN ISO 80601-2-55
• Electrical Interface: 3-pin Molex

REPLACEMENT FOR

• Analytical Industries [PSR-11-917-M]
• City Technology [MOX-9]
• Datascope [0600-00-0002 (MAX-12f)]
• EnviteC [OOM-202]
• Hamilton [396008, 396009, Galileo, Raphael, Arabella, Aladdin, 51254, G5, Arabella]
• IMT [PF300]
• International Technologies [M-04]
• MSA [472062, 470644]
• Mercury Medical [10-103-06]
• Pacifitech [PT-12A]
• Sensidyne [Acutonic Hi Freqency Jet Ventilator, 00M102]
• Siemens [9004979-E347E]
• Spacelabs [90513, Capnograph]
• Taema [YR049700, Cesar-2, Horus-4]
• Teledyne [R24MED #B-62321]
• Teleflex (Hudson) [5556, V-12]
• VTI [103100]
