Maxtec oxygen sensors are recognized as the number one choice for sensor replacement by hospitals and equipment manufacturers worldwide. No matter the application, you can trust Maxtec sensors to provide longer life and more stable readings to keep your equipment running smoothly.

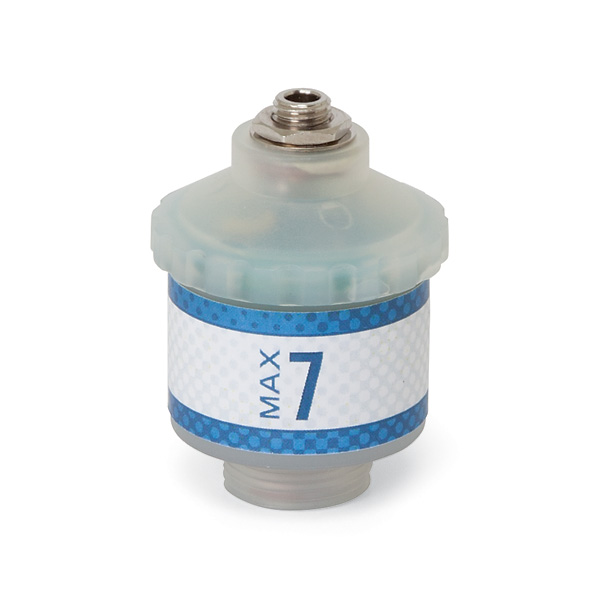

Part Number R109P09

SPECS

• Range of Measurement: 0 to 100% O2
• Output Range: 8.0 to 12.0 mV
• Zero Offset: ≤ .2 mV
• Response Time: ≤ 12 s
• Linearity: ± 2.0%
• Expected Lifetime: < 6 years
• Temperature Compensation: NTC
• Operational Temperature Range: 0°C to 45°C
• Storage Temperature Range: -20°C to 50°C
• Humidity Range: 5% to 95% RH, non-condensing
• Interference: Per EN ISO 80601-2-55
• Electrical Interface: 3.5mm mono jack

REPLACEMENT FOR

• Precision Medical [505327]
• Teledyne [R17MED #C-43690, AX/MX300 Series, R17MED #C-43690]
