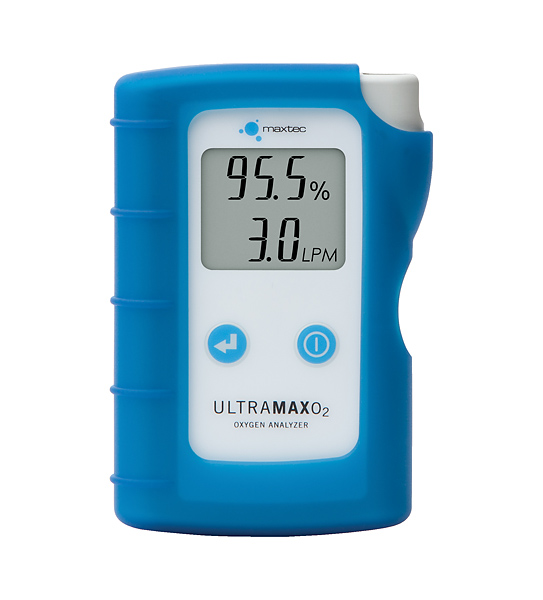

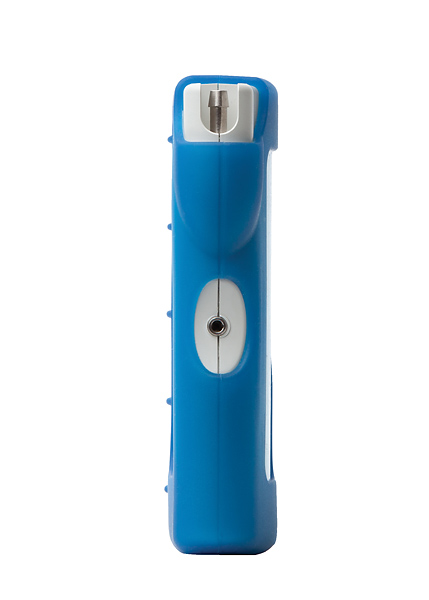

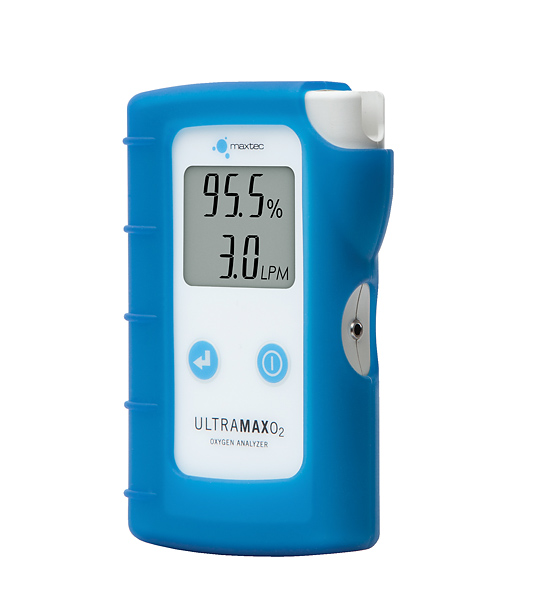

The UltraMaxO2 analyzer was designed to verify oxygen concentration at a glance, including the flow and outlet pressure of oxygen concentrators. Its advanced design provides high-level performance and reliability.

Specifications

• Oxygen Measurement Range: 20.9% to 96%. (from concentrator)
• Oxygen Measurement Accuracy: ±1.5% of full-scale at constant temperature and optimal flow
• Oxygen Measurement Resolution: 0.1% oxygen
• Flow Measurement Range: 0 to 10 lpm
• Flow Measurement Accuracy: ±0.2 lpm
• Flow Measurement Resolution: 0.1 lpm
• Pressure Measurement: Range 0.5 to 50 psi (3.4 to 344 kPa)
• Pressure Measurement Accuracy: ±0.5% psi (±0.5% kPa)
• Pressure Measurement Resolution: 0.1 psi (0.1 up to 199, 1 from 200 to 344 kPa)
• Response Time: ≤ 17 seconds
• Warm-up Time: < 1 second
• Operating Temperature: 15°C to 40°C (59°F to 104°F)
• Storage Temperature: -15°C to 60°C (5°F to 140°F)
• Atmospheric Pressure: 800 to 1000 mbars
• Humidity: 0% to 95% (non-condensing)
• Power Requirement: Two (2) AA alkaline batteries (2 x 1.5 volts)
• Battery Life: 1,100 hours (16,500 read cycles)
• Low Battery Indication: ”Low Battery” icon displayed on LCD
• Dimensions: 85.98 x 129.54 x 25.27 mm
• Weight: 181 gr.
