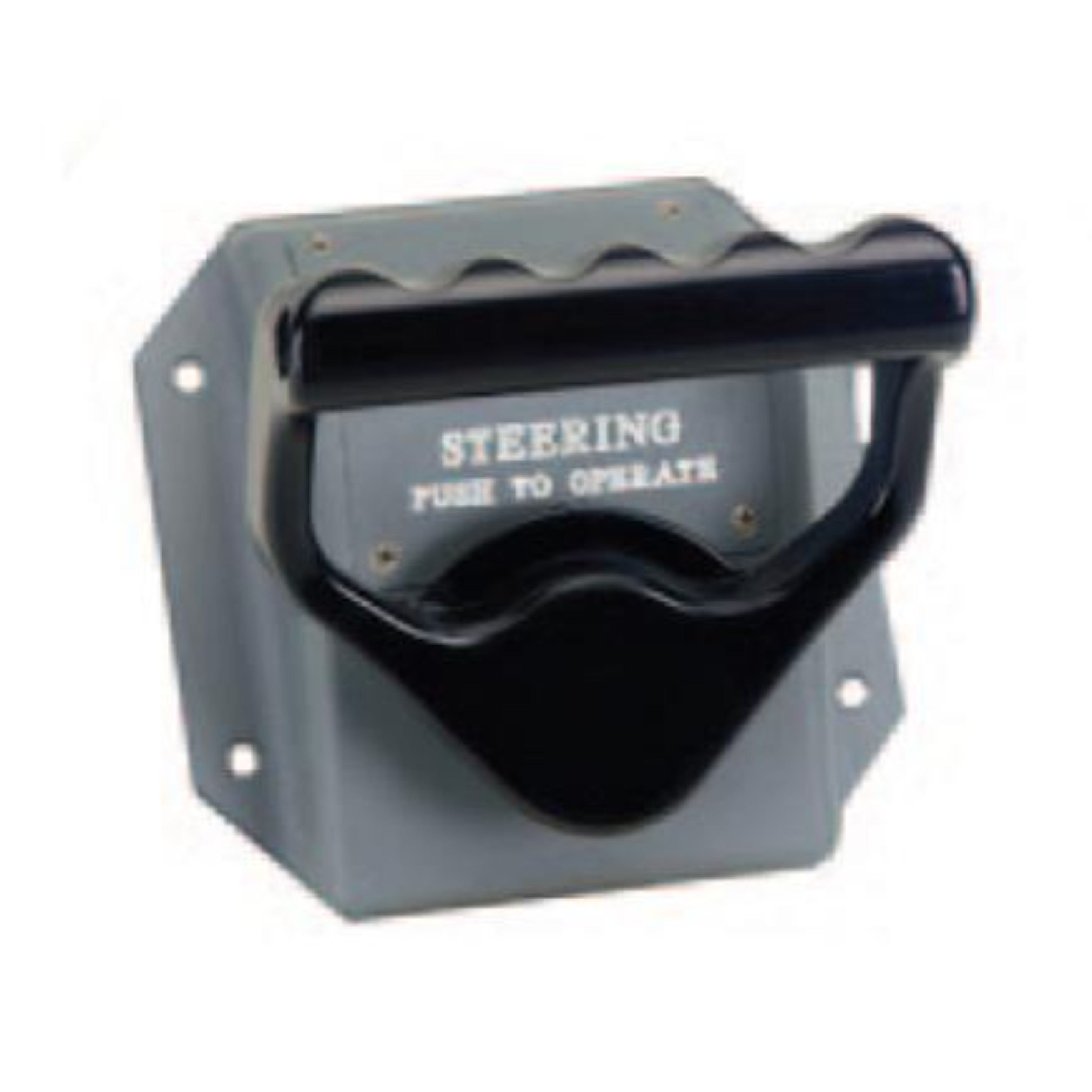

Kavlico’s Steering Control Wheel (Tiller) provides all the necessary elements for control, while providing signal indication via an internal RVDT. Our SHW unit meets the small envelope, minimum weight, and high reliability demanded by the aerospace industry. The design of the SHW unit contains many features common to Kavlico’s overall line of pilot control products, whose reliability and durability have been verified through extensive qualification testing.

Operation of the steering handwheel downwardly actuates a single pole, double throw switch signaling that the handwheel is activated. A combination of this signal & the RVDT output is used to steer the nose landing gear left or right, during take off, landing and taxi. Extensive use of lightweight non-metallic materials for the handle, cover, and body are used to keep the overall weight of the unit to a minimum. Viscous damping is used in the design to control the rate of return of free handle to prevent any abrupt motion of the nose wheel on the ground. An ergonomic, easy-to-use segment wheel has been installed per FAA 25 regulations.

Both the RVDT and micro-switches receive power through a MIL-DTL-38999 connector. The combination of fixed internal drive gear connected to an antibacklash gear on the RVDT provides a high accuracy signal proportional to lever travel.
