2201-2801 Series

Potentiometers


  • /media/djcatalog2/images/item/11/2201-2801-series.jpg

    Manufacturer: Sensata BEI Sensors

    Rotary motion precision sensor

    Services
    Professional and fast quote
    Product usually available on stock

    Delivery:

    • ASK for "Just in time" delivery

    More questions?

    +39 02 3340 0846 or Contact us

    Questions?

    +39 02 3340 0846
    or Contact us

    Description

    Features

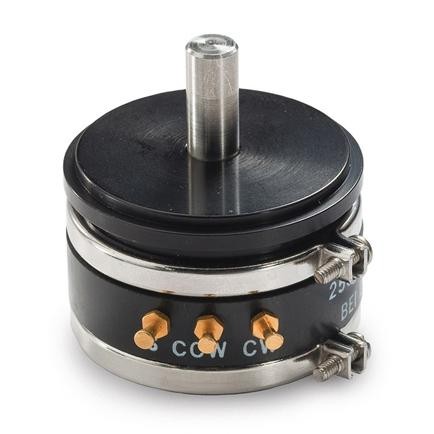

    • Servo Model / Ball Bearing
    • 7/8” to 3” Diameter Servo Mount
    • Hybrid Single-Turn Precision Potentiometers

    Specifications

    Description 2201 2301 2501 2601 2701 2801
    Actual Electrical Travel 354° 354° 354° 354° 356° 358°
    Normal Resistance Range 500Ω to 7.5K 500Ω to 10K 750Ω to 15K 1KΩ to 17.5K 1KΩ to 25K 1.5KΩ to 40K
    Extended Resistance Range 200Ω to 10K 200Ω to 15K 500Ω to 20K 500Ω to 25K 500Ω to 30K 750Ω to 50K
    Resistance Tolerance: Standard % ±5 ±5 ±5 ±5 ±5 ±5
    Best Practical % ±3 ±3 ±3 ±3 ±3 ±3
    Power Rating At 70°C, Derating to 0 At 125°C (Watts) 1.25 2.0 3.0 4.0 5.0 7.0
    Linearity, Independent, Tolerance, Standard % ±0.5 ±0.4 ±0.3 ±0.25 ±0.2 ±0.15
    Best Practical % ±0.25 ±0.2 ±0.15 ±0.12 ±0.10 ±0.07
    Output Smoothness Max. (% Of Total Applied Voltage) 0.5 0.4 0.3 0.25 0.2 0.15
    End Voltage Max. (% Of Total Applied Voltage) 0.25
    Insulation Resistance At 500 VDC, Min. (Megohms) 1000
    Dielectric Withstanding Voltage (Volts RMS) 1000
    Max. Applied Voltage(Volts DC) 400
    Temperature Coefficient Of Potentiometer, Max. % / °C ±.007
