Precision potentiometers are immune to EMI and are designed to provide a ratiometric output. The resistive element can be wirewound, conductive polymer or a hybrid of the two. A wide range of resistivities and electrical measuring ranges are available, including multi-turn potentiometers.
Features
Bushing Mount / Sleeve Bearing
7/8” to 1-3/4” Diameter Bushing Mount

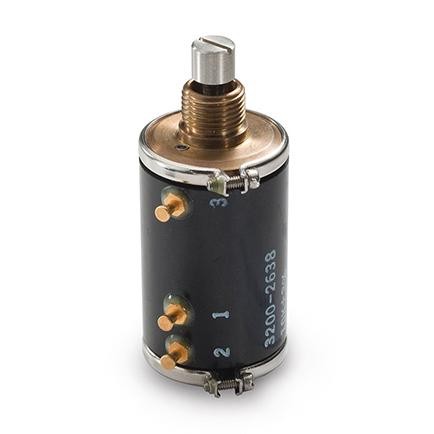

Wirewound 3, 5 and 10-Turn Precision Potentiometers
Specifications
Description
3205 / 3206
3705
3208 / 3209
3202 / 3203
3702
3605
3232 / 3233
3602
Actual Electrical Travel
1080°+4°-0°
1080°+1°-0°
1800°+4°-0°
3600°+4°-0°
3600°+1°-0°
1080°+4°-0°
3600°+10°-0°
3600°+4°-0°
Normal Resistance Range
50Ω to 30K
50Ω to 100K
50Ω to 50K
100Ω to 100K
100Ω to 300K
50Ω to 100K
100Ω to 100K
100Ω to 300K
Extended Resistance Range
3Ω to 75K
5Ω to 250K
5Ω to 125K
10Ω to 250K
10Ω to 830K
5Ω to 180K
10Ω to 200K
10Ω to 600K
Resistance Tolerance: Standard %
±3
±3
±3
±3
±3
±3
±3
±3
Best Practical %
±1
±1
±1
±1
±1
±1
±1
±1
Power Rating At 70°C, Derating to 0 At 125°C (Watts)
1.5
5.0
2.0
2.5
7.0
5.0
2.5
7.0
Linearity, Independent, Tolerance, Standard %
±0.5
±0.2
±0.35
±0.25
±0.1
±0.35
±0.25
±0.25
Best Practical %
±0.10
±0.04
±0.07
±0.05
±0.02
±0.1
±0.1
±0.05
Equivalent Noise Resistance (ENR) Max. (Ohms)
100
End Voltage Max. (% Of Total Applied Voltage)
Within linearity tolerance
Insulation Resistance At 500 VDC, Min. (Megohms)
1000
Dielectric Withstanding Voltage (Volts RMS)
1000
Max. Applied Voltage(Volts DC)
100
Temperature Coefficient Of Potentiometer, Max. % / °C
