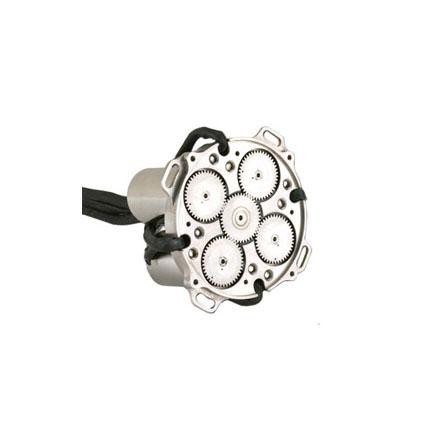

Geared RVDT

RVDTs


  • /media/djcatalog2/images/item/11/geared-rvdt.jpg

    Manufacturer: Sensata Kavlico

    Geared RVDT sensor

      • High reliability (MTBF of 1,000,000 hrs. typical)
      • High accuracy (± 0.25% full scale)
      • Stable output as high as 80g vibration
      • Pressurized & hermetically sealed designs available
    Services
    Professional and fast quote
    Product usually available on stock

    Delivery:

    • ASK for "Just in time" delivery

    More questions?

    +39 02 3340 0846 or Contact us

    Questions?

    +39 02 3340 0846
    or Contact us

    Description

    RVDTs with integral gear heads are available for applications with higher angular displacements or multiple revolutions.
    In those cases where many input revolutions must be measured for position such as in trailing edge flap systems, we can provide a high precision gear head to extend the input range into the thousands of revolutions range.

    Features

    • High reliability (MTBF of 1,000,000 hrs. typical)
    • High accuracy (± 0.25% full scale)
    • Stable output as high as 80g vibration
    • Pressurized & hermetically sealed designs available
    • Precision alignment or coupling features
    • Angular & rotary measurements
    • Multiple channels (tandem or parallel)
    • Single cycle (± 80°) or dual cycle (± 40°)
    • Non-contact brushless rotor design
    • Infinite angular displacement with gear reduction designs
    • Size 8 or size 11 servo or flange mount
    • Lightweight, robust designs, small package
    • Constructed for stability and interchangeability over its life
    • Qualified to RTCA/DO-160 and MIL-STD-810 specs

    Applications

    • Stand-alone airframe
    • Flight control actuators
    • Valves
    • Nose wheel steering systems
    • Cockpit controls
    • Engine bleed air systems
    • Fuel controls
    • Fly-by-wire systems
    • Brake-by-wire systems
    • Environmental control systems
