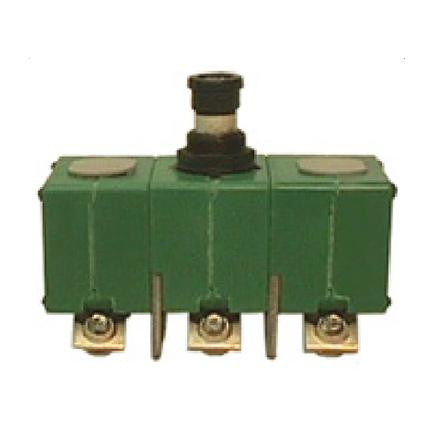

KLIXON® 9TC series circuit breakers provide ambient compensated circuit protection in a lightweight, sub-miniature package size. The three–phase integrally linked design provides overcurrent protection in the event of simultaneous or unbalanced overloads, including short circuit conditions.

Features

• Miniature size
• Light weight
• Trip–free design
• AS58091 qualified
• Current rating: 1, 15 to 35 amp
• High interrupting capacity
• Protective terminal barriers between each phase
• Vibration pads improve mounting stability
• One phase trips all
• Includes features identical to Klixon® 2TC and 3TC series
• Options include: longer push buttons, dust boot (part #14500-1 fits 15/32 bushing, part #14500-5 fits 7/16 bushing)
