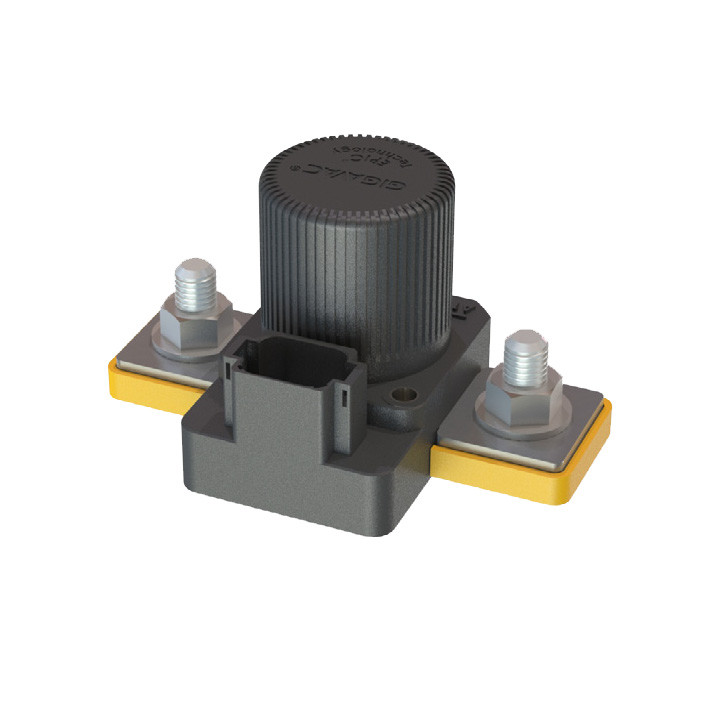

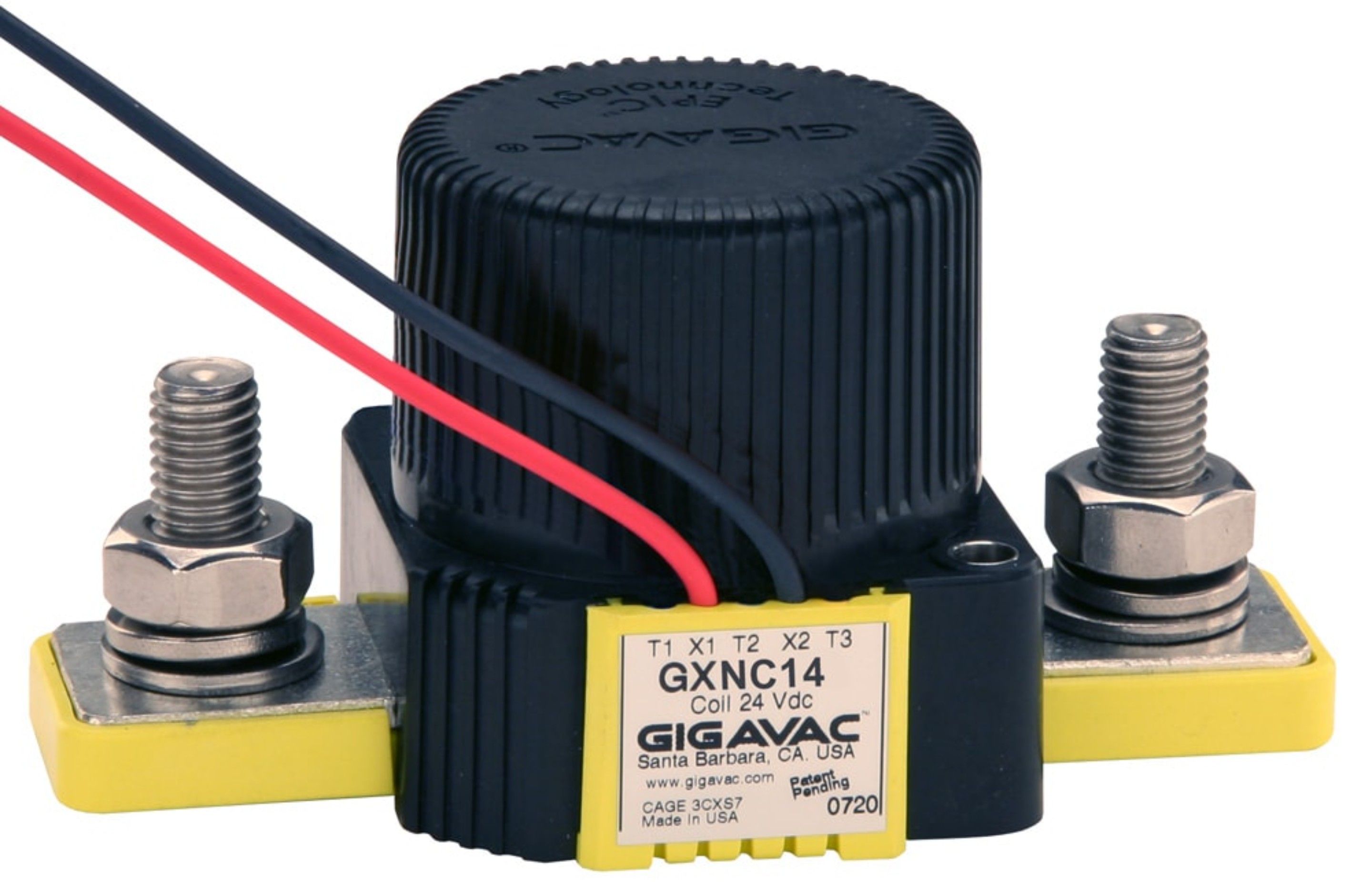

Contactor with CAN Bus communication reporting current, voltage, temperature, status, cycle count, and more. Other features include overcurrent trip points, undervoltage and overvoltage setpoints, power-up state, and delay-on break.

• Continuous Current: 350A or 600A
• Voltage Rating: 800 VDC
• Coil Voltage: 12-24 VDC
• Chassis level power terminals – No need for specially routed power cables, special bus bars, or unique lugs.
• Rugged ceramic seal rated to 175°C – Reduced risk of fire or meltdown in over current conditions. The same technology used for advanced aerospace programs.
• Hermetically sealed gas filled chamber – Designed to meet: UL1604 for Class I & II, Div 2 and Class III for use in hazardous locations, IP67 for temporary water immersion for 30 min, IP69K for pressure washing, SAE J1171 – external ignition protection, ISO8846 for protection against ignition around flammable gasses, and MIL-R-6106.
• High Efficiency Dual DC Coils – Very low continuous coil power with no EMI emissions or crosstalk on your system control power.
• Built-in coil suppression for all DC coils – Eliminates the cost and engineering time to add external coil suppression.
• Orientation invariant – Can be installed in any orientation without a reduction in performance
