GXVB611 Series

Contactors

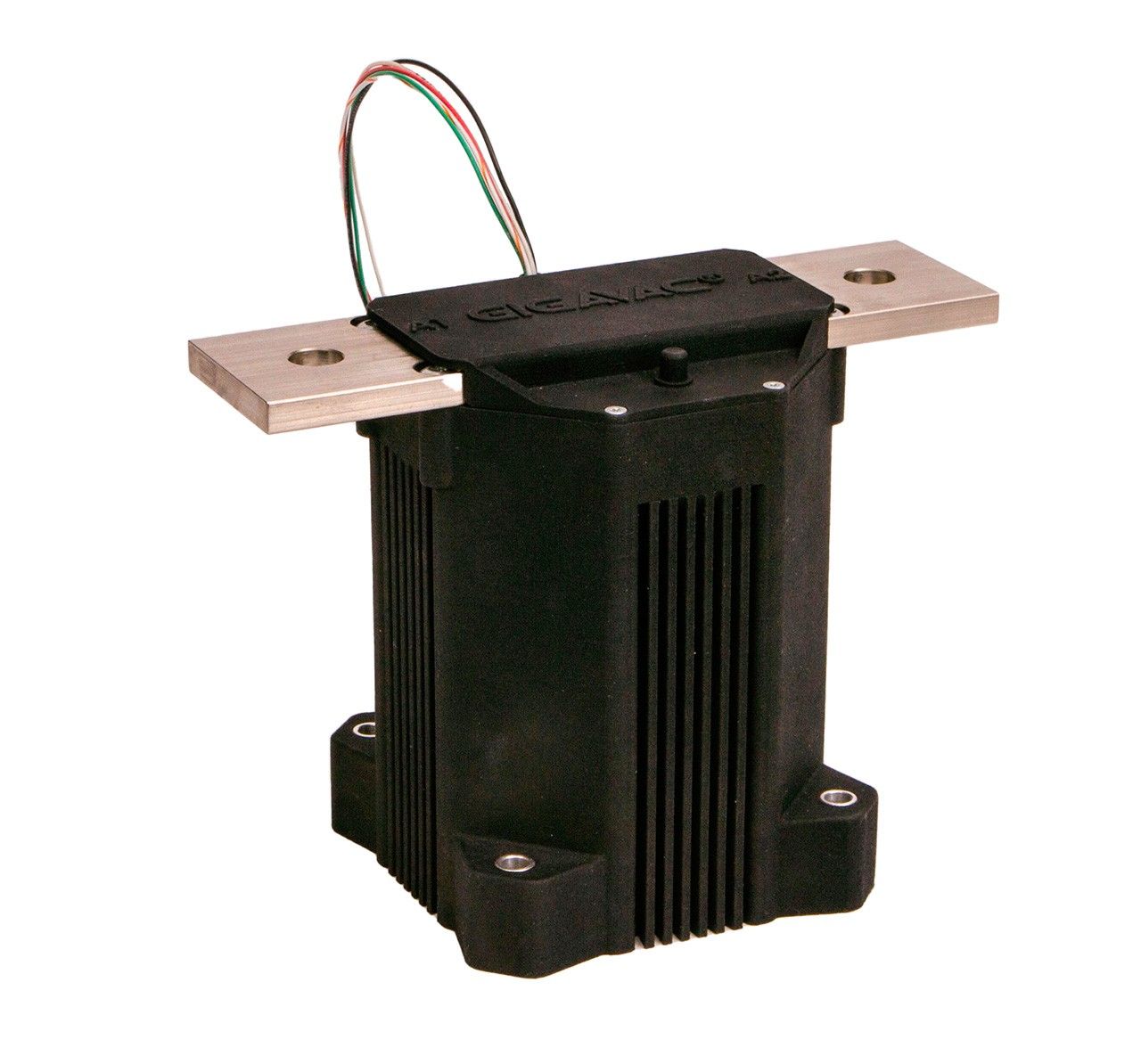

GXVB611CAB
  • /media/djcatalog2/images/item/16/gxvb611.png
    • NEW !
    Manufacturer: Sensata Gigavac
    • Continuos Current: 600A
    • Rated Voltage: 1000 VDC
    • Coil Voltage: 12V | 24V
      • Gas filled design offers lower resistance than non-hermetic switches resulting in higher system efficiency and less heat generation.
      • Meet IP67 level.
      • Suppression gas allows high fault interrupt capability and prohibits oxidation---Strong capability of cooling arc, rapidly breaking current.
      • High Efficiency Dual DC Coils – Very low 24 VDC continuous coil power with no EMI emissions or cross-talk on your system control power.
      • Built-in coil suppression for all DC coils – Saves you engineering time
        and parts cost to add external coil suppression.
      • Certification: UL 60947-4-1, CE (pending)
      • Ideal for battery powered systems or where low power is needed.
      • DC fast charging
      • Energy storage systems
      • Battery electric special mobility
    Services
    Professional and fast quote
    Product usually available on stock

    Delivery:

    • ASK for "Just in time" delivery

    More questions?

    +39 02 3340 0846 or Contact us

    Questions?

    +39 02 3340 0846
    or Contact us

    Description

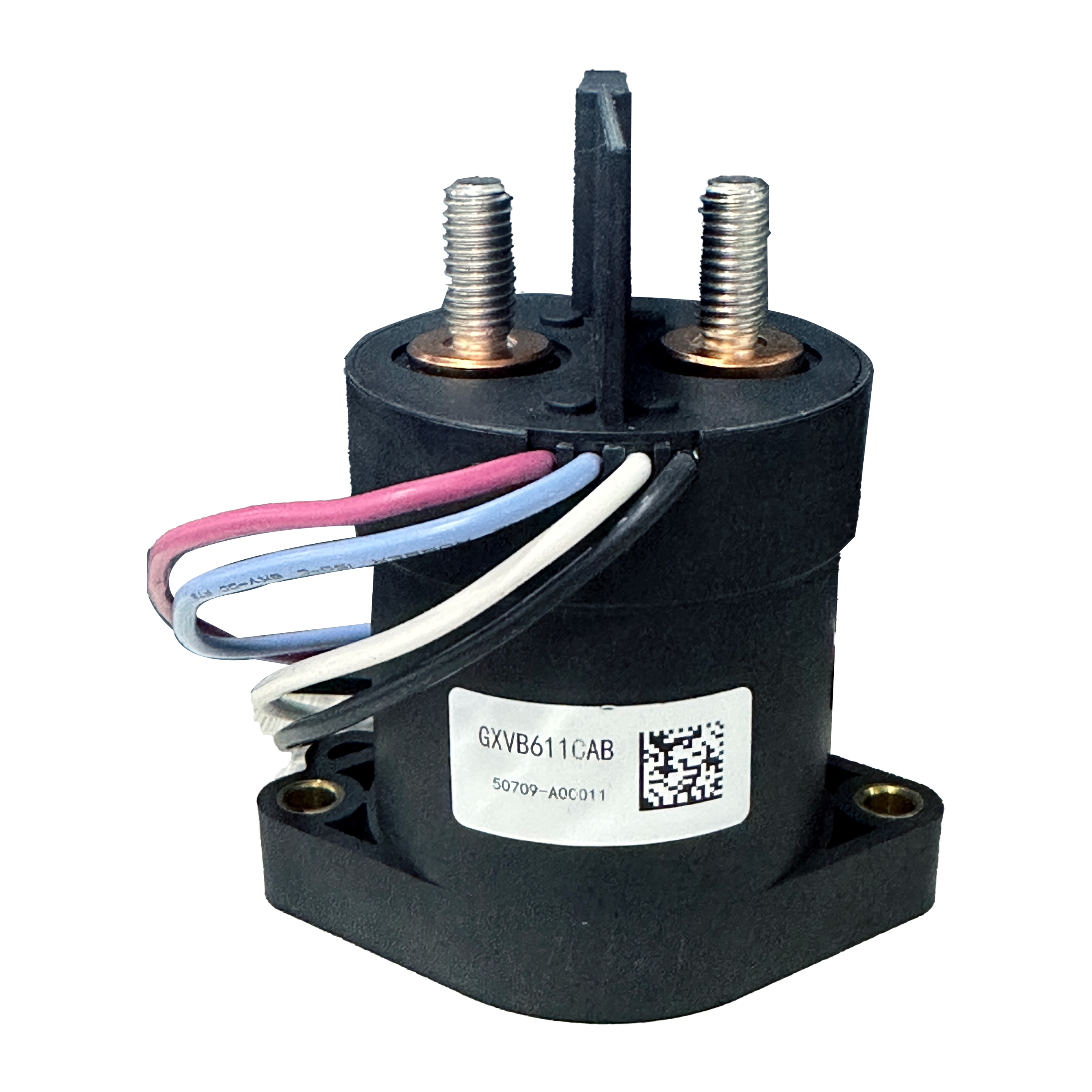

    High Voltage DC Contactor, 1000VDC/600A -

    The GXVB611CAB is a bidirectional contactor with auxiliary normally open contact, to provide reliable DC switching. With rated voltage for up to 1000 VDC and nominal current ratings up to 600A.
    This model is supplied with 30 cm (12 in) flying leads, supports bottom mounting and is an ideal fit for applications such as megawatt EV charging and other industrial uses.

    Electrical & Performance
    Rated Voltage (V) 1000
    Nominal Current (A) 600
    Contact Arrangement Main SPST-NO
    Auxiliary SPST-NO
    Mechanical Life (cycles) 200,000
    Contact Resistance (MΩ) Max 0.25
    Typical 0.16
    Insulation Resistance (MΩ) 1000 @ 1000 VDC
    Dielectric at sea level (leakage<1mA) 4300 VAC
    Shock, ½ Sine, 11ms Actuated (closed) 50 G
    Non-Actuated (open) 20 G
    Vibration, Sinusoidal (10-55Hz) 5 G
    Max. Break Current @ 1000V 400 A
    Max. Break Current @ 800V (1 cycle) 600 A
    Electric Life (cycles) 6,000 @ 1000 VDC / 20A
    Coil Rating at 25°C
    Coil P/N Designation B C
    Coil Voltage, Nominal (VDC) 12 24
    Coil Type Dual Dual
    Coil Voltage, Max (V) 16 32
    Pick-Up Voltage, Max (V) 8 16
    Drop-Out Voltage, Min (V) 3 6
    Pick-Up Coil Current (A) (<100 ms) 6 2.9
    Hold Coil Current (A) 0.4 0.17
    Coil Holding Power (W) 4.8 4.1
    Operate Time, Max (ms) 30 30
    Release Time, Max (ms) 15 15
