RER02p5 Series

Contactors

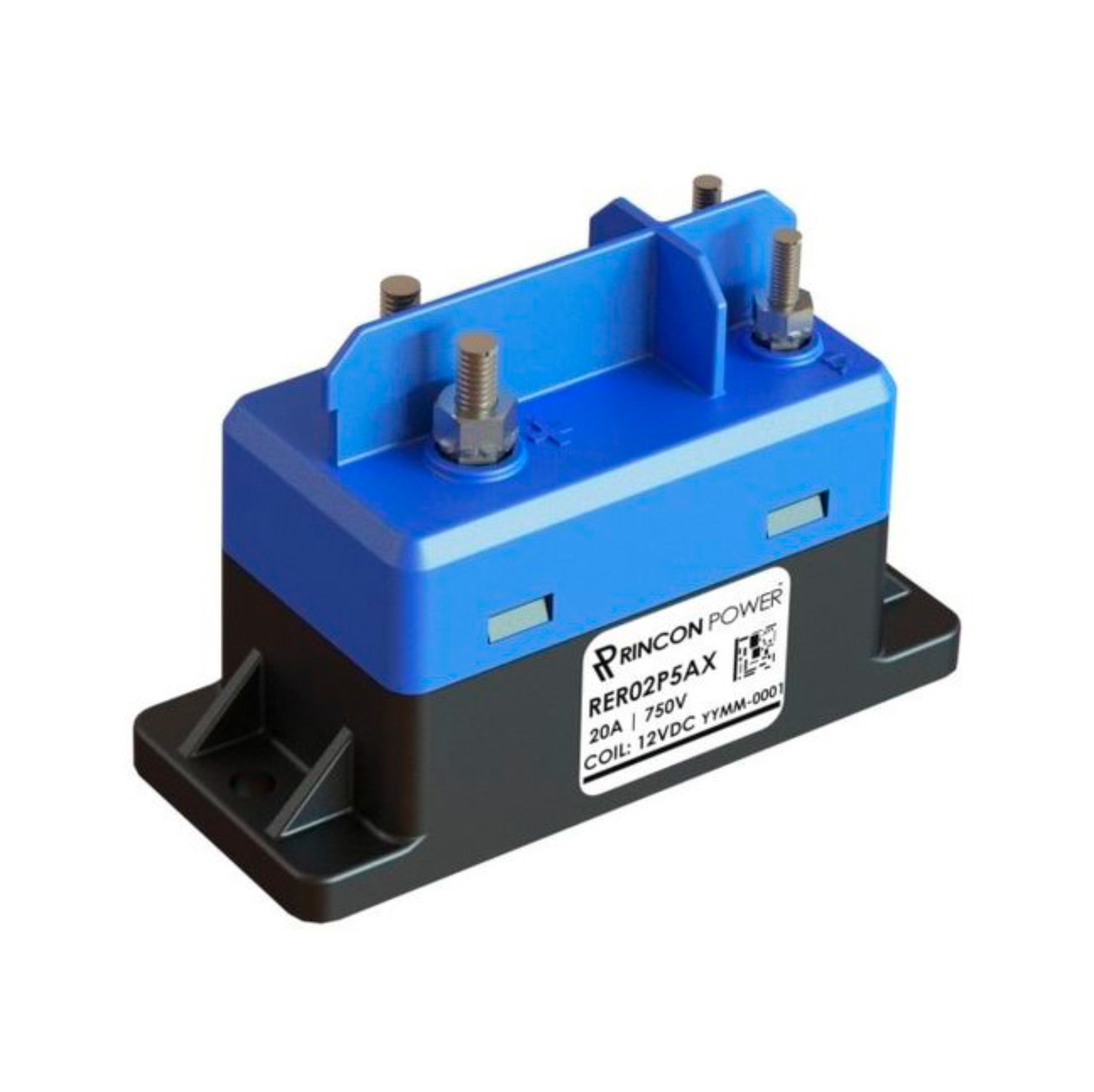

  • /media/djcatalog2/images/item/16/rer02-series.jpg

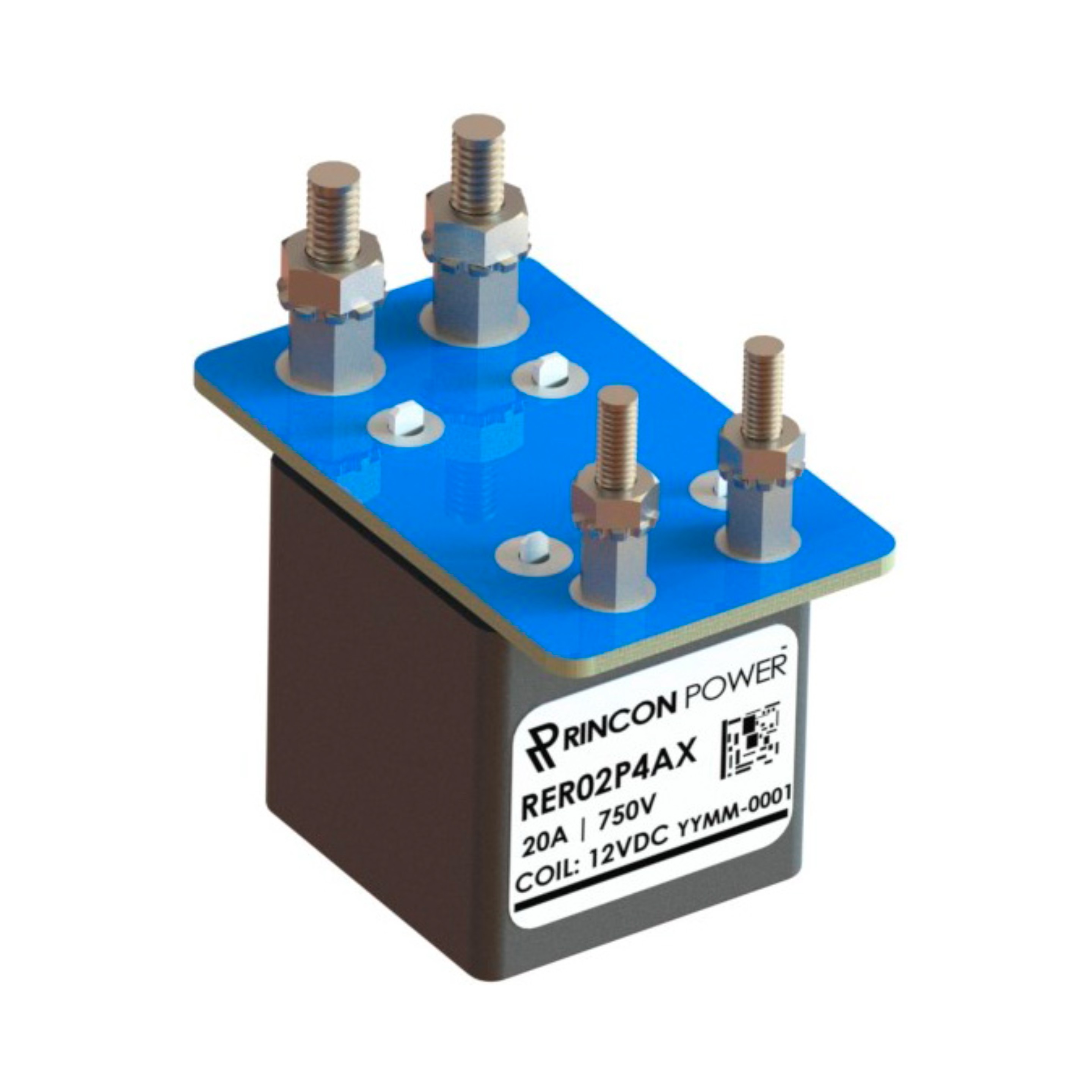

  • /media/djcatalog2/images/item/16/rer02-series.4.jpg
    • UPDATED !
    Manufacturer: RinconPower
    • Continuous Current: 40A
    • Rated Voltage: 1000 VDC
    • Coil Voltage: 12V | 24V
      • Compact sealed DC relay construction
      • Fast operate and release times
      • Form-factor compatible mechanical layout
      • Suitable for capacitive charging and discharge circuits
      • Optimized for pre-charge and auxiliary DC switching
      • RoHS and REACH compliant
      • Cost-effective alternative for compatible
      • Low power coil options available
    Services
    Professional and fast quote
    Product usually available on stock

    Delivery:

    • ASK for "Just in time" delivery

    More questions?

    +39 02 3340 0846 or Contact us

    Questions?

    +39 02 3340 0846
    or Contact us

    Description

    The RER02P5 Series are compact high voltage DC relays designed for pre-charge and auxiliary DC control applications requiring a specific mechanical form factor. Based on the proven RER02 electrical platform, the RER02P5 Series provides a cost-effective solution for systems where full performance specifications of higher- end pre-charge relays are not required. With sealed construction and a compact footprint, the RER02P5 Series is well suited for controlled capacitor charging, DC bus discharge, and auxiliary DC switching in electric vehicles, energy storage systems, and industrial equipment. These relays offer a practical balance of form-factor compatibility, reliability, and value.

    CHARACTERISTIC

    MEASURE

    Contact Arrangement

    Form X, SPST NO

    Max Switching Voltage

    1000 VDC

    Dielectric Withstand Voltage (Max Leakage Current: 1mA)

    3,000 VAC, 1 minute contacts to coil

    3,000 VAC, 1 minute across open contacts

    Continuous Current (4mm2 conductor)

    40A

    Overload Current 30 seconds

    80A

    1 hour

    30A

    Max Break – 30A @ 450V

    5 cycles

    Max Short Circuit Current -0.5 second

    200 A

    Min Insulation Resistance

    1,000 Mohm @ 500VDC

    Contact Voltage Drop (Max)

    50mV @ 10A

    Operate Time (Max, incl bounce)

    30ms

    Release Time (Max)

    10ms

    Shock - Functional, 1/2 Sine, 11ms

    20G

    Shock – Destructive, 1/2 Sine, 11ms

    50G

    Operating Temperature

    -40˚C to 85˚C

    Ingress Protection

    IP67,

    Mechanical life

    500,000 cycles

    AUXILIARY CONTACTS

    MEASURE

    Contact Arrangement

    Not available

    COIL (20° C)

    MEASURE

    Nominal Voltage

    12 VDC

    24 VDC

    Pick-up Voltage (Max)

    9 VDC

    18 VDC

    Drop-out Voltage (Min)

    0.8 VDC

    1.6 VDC

    Coil Resistance

    48Ω

    192Ω

    Coil Power at Nominal Voltage

    3W

    3W
