RXR1K Series

Contactors

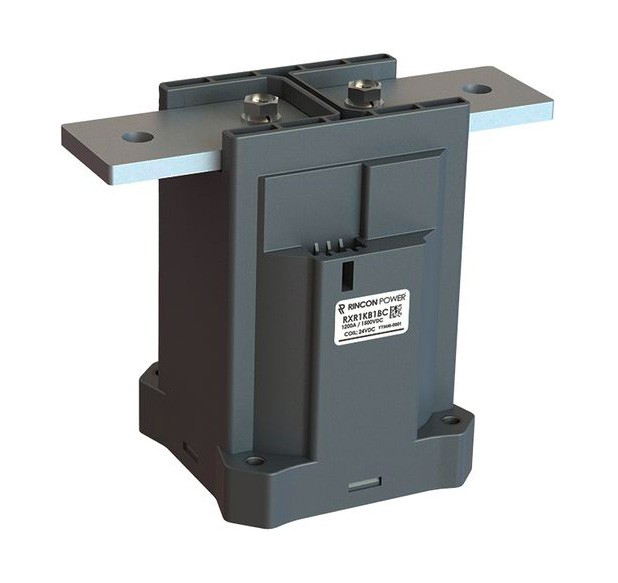

  • /media/djcatalog2/images/item/13/rxr1k-series.jpg

    Manufacturer: RinconPower
    • Continuous Current: 1200A
    • Rated Voltage: 1500 VDC
    • Coil Voltage: 12V | 24V | 48V
      • SPST Normally Open High Voltage Contactors
      • Hermetic Ceramic Seal with gas fill for superior carry and switching performance
      • Bi-Directional Power Switching
      • Mechanically linked auxiliary contacts for accurate main position feedback
      • Integrated coil economizer for optimized power consumption
      • Integrated coil suppression with zero back EMF4
      • Meets RoHS 2011/65/EU
      • IEC60947-4-1 compliant
    Services
    Professional and fast quote
    Product usually available on stock

    Delivery:

    • ASK for "Just in time" delivery

    More questions?

    +39 02 3340 0846 or Contact us

    Questions?

    +39 02 3340 0846
    or Contact us

    Description

    The RXR1K MegaTactor Series are hermetically sealed high voltage DC contactors designed for ultra-high- current power switching in the most demanding DC power systems. Rated for continuous currents up to 1200A and system voltages up to 1500VDC, the RXR1K Series delivers robust, bi-directional DC switching performance for mission-critical applications. Integrated coil economization and mechanically linked auxiliary contacts support efficient operation and reliable position feedback, while the hermetic ceramic seal with gas fill protects internal components from moisture, dust, and contaminants. Designed in a proven rectangular form factor commonly used for system-level DC power control, the RXR1K Series is well suited for large-scale energy, stationary infrastructure, and heavy-duty DC power systems requiring maximum current capability, long-term reliability, and drop-in compatibility with established rectangular contactor platforms.

    CHARACTERISTIC

    MEASURE

    Contact Arrangement

    Form X, SPST- NO

    Max Switching Voltage

    1500 Vdc

    Dielectric Withstand Voltage (Leakage <1mA) Between Open Contacts
    Between Contacts and Coil

    4300 VRMS (60 sec)

    Mechanical Life

    300,000 cycles

    Continuous Current (300mm2 conductor)

    600A

    Min Insulation Resistance

    100 MΩ @ 1,000V (50 MΩ at end of life)

    Contact Resistance (Max) measured at 200A

    0.3mΩ

    (Typical) measured at 200A

    0.1-0.15mΩ

    Operate Time (Max, incl bounce)

    25ms

    Release Time (Max)

    10ms

    Shock - Functional, 1/2 Sine, 11ms

    20 G Peak

    Shock - Destructive, 1/2 Sine, 11ms

    50 G Peak

    Vibration, Sinusoidal (500-2000 Hz Peak)

    15G

    Operating Temperature

    -40˚C to 85˚C (170° Max Terminal Temperature)

    Sealed Contacts

    Exceeds IP69K (Hermetically Sealed)

    Salt Fog

    MIL-STD-810

    AUXILIARY CONTACTS

    MEASURE

    Contact Arrangement

    SPDT (Normally Open + Normally Closed)

    Continuous Current

    3A / 24 VDC

    Minimum Current

    10mA @ 5V

    ECONOMIZED DUAL COIL (20°C)

    MEASURE

    Nominal Voltage

    12V

    24V

    48V

    Max Voltage

    16V

    32V

    64V

    Pick-up Voltage

    ≥9V

    ≥18V

    ≥36V

    Drop-out Voltage

    ≤6V

    ≤12V

    ≤24

    Inrush Current, Max (80 ms)

    3.8A

    1.9A

    .0.9A

    Coil Current

    0.65A

    0.33A

    0.16A

    Coil Power

    7.8 W

    7.8W

    7.8W
