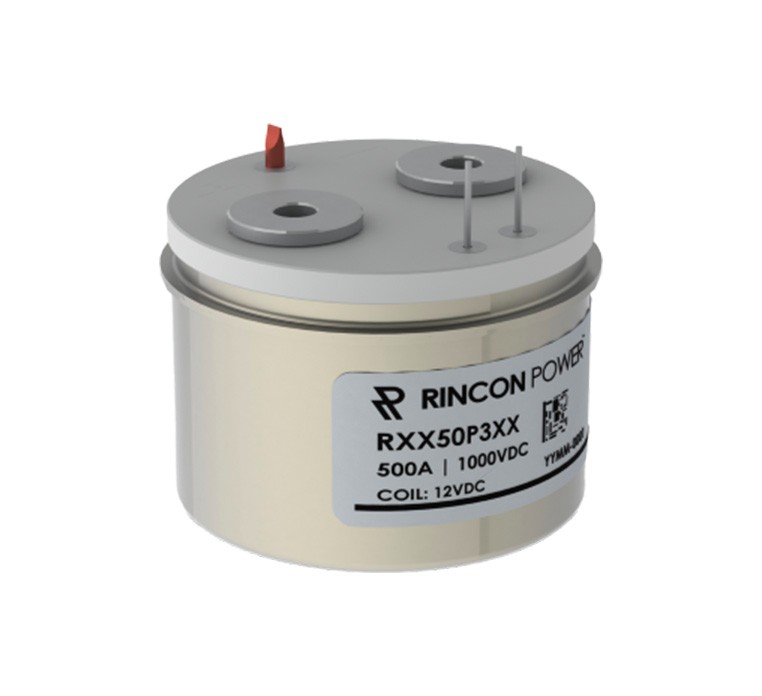

CHARACTERISTIC

MEASURE

Contact Arrangement

Form X, SPST- NO

Max Switching Voltage2

1000 Vdc

Dielectric Withstand Voltage (Leakage <1mA) Between Open Contacts
- Between Contacts and Coil

2200 VRMS (60 sec)

Mechanical Life

300,000 cycles

Continuous Current (150mm2 conductor)

500A

Min Insulation Resistance

100 MΩ @ 1,000V (50 MΩ at end of life)

Contact Resistance (Max) measured at 200A

0.15mΩ

(Typical) measured at 200A

0.8-.1mΩ

Operate Time (Max, incl bounce)

25ms

Release Time (Max)

10ms

Shock - Functional, 1/2 Sine, 11ms

20 G Peak

Shock - Destructive, 1/2 Sine, 11ms

50 G Peak

Vibration, Sinusoidal (500-2000 Hz Peak)

15G

Operating Temperature

-40˚C to 85˚C (170° max terminal temperature)

Sealed Contacts

Exceeds IP69K (hermetically sealed)

Salt Fog

MIL-STD-810

PWM ECONOMIZED COIL (20°C)

MEASURE

Nominal Voltage

12V

Max Voltage

16V

Pick-up Voltage

≥9.5V

Drop-out Voltage

≤5V

Inrush Current, Max (80 ms)

4.0A

Coil Current

1.1A

Coil Power, HOLD (5v)

5.5 W

Coil Resistance

3.5-4.0 Ω
