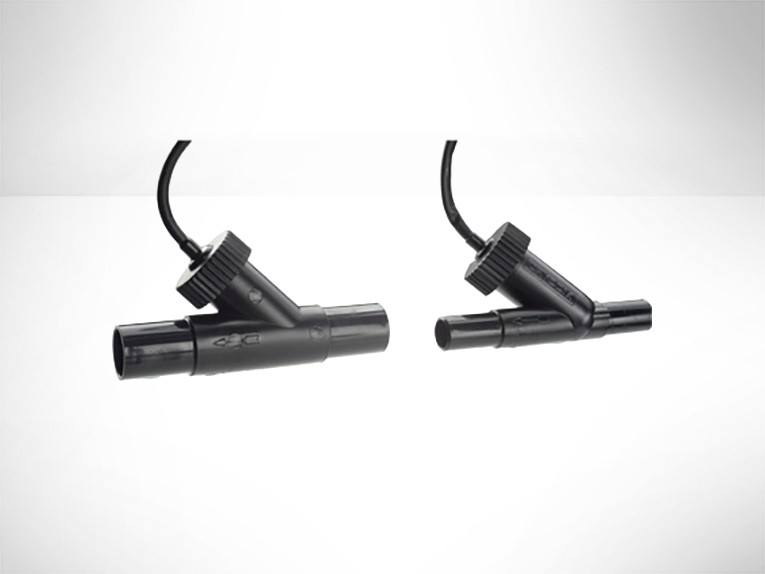

Flow Switches Series
-
- 15mm & 22mm tube versions
- Low flow versions available
- WRAS approval
- Temperature rated to 85ºC (185ºF)
Services
Description
The FS range of Flow Switches are reed switch based devices which are manufactured in Acetal resin. These switches are designed for use in liquid flow systems up to 10 Bar pressure. Advanced design ensures minimal fluid flow restriction.
| Standard parts | Approvals | Output | Pipe size | Power capacity | |
 |
FS15A
|
WRAS
|
SPNO
|
15mm
|
15VA
|
 |
FS15LF
|
WRAS
|
SPNO
|
15mm
|
15VA
|
 |
FS22A
|
WRAS
|
SPNO
|
22mm
|
15VA
|
|
|
FS22LF
|
WRAS
|
SPNO
|
22mm
|
25VA
|
- Flow switchInline Switch
