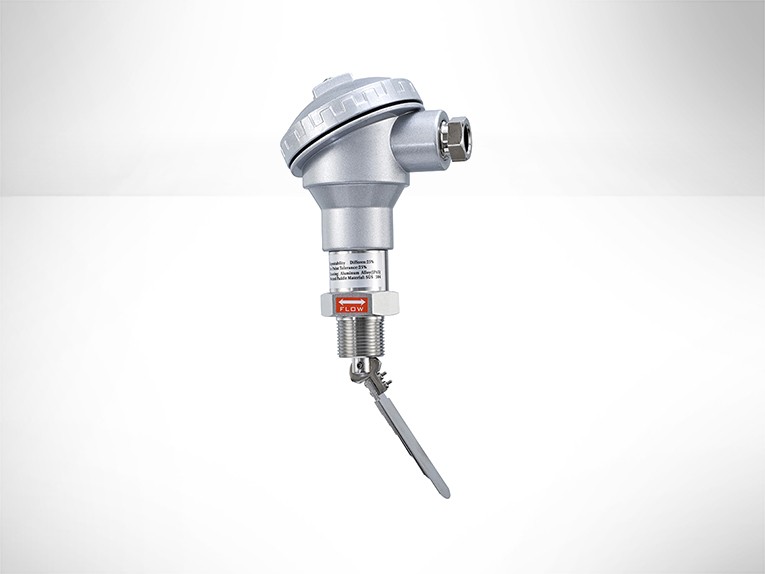

Paddle flow switch in SS for G1" to G3" pipe
-
- Stainless steel SS 304 paddle
- G3/4" or 1"NPT mounting plug thread
- Aluminium alloy housing or DIN 43650 plug
- Maximum operating pressure 20 bar
- Operating pressure up to 150 Degrees C (H versions)
Services
Description
The LFS range of flow switches are paddle devices that are mounted vertically through a socket or upstand process connection. Electrical connections are made within the housing, which has a screw on sealed lid and cable gland. A choice of paddle sizes is supplied with each switch and selection can be made with reference to the chart opposite. Higher temperature versions are designated by "H" in the part number.
| Standard parts | Output | Pipe size | Power capacity | Thread | |
 |
LFS-01
|
SPDT
|
G1"-G3"
|
40VA
|
1"NPT
|
 |
LFS-02
|
SPDT
|
G1"-G3"
|
40VA
|
3/4"BSP
|
 |
LFS-03
|
SPDT
|
G1"-G3"
|
40VA
|
1"NPT
|
 |
LFS-04
|
SPDT
|
G1"-G3"
|
40VA
|
3/4"BSP
|
 |
LFS-01H
|
SPDT
|
G1"-G3"
|
40VA
|
1"NPT
|
 |
LFS-02H
|
SPDT
|
G1"-G3"
|
40VA
|
3/4"BSP
|
 |
LFS-03H
|
SPDT
|
G1"-G3"
|
40VA
|
1"NPT
|
 |
LFS-04H
|
SPDT
|
G1"-G3"
|
40VA
|
3/4"BSP
|
