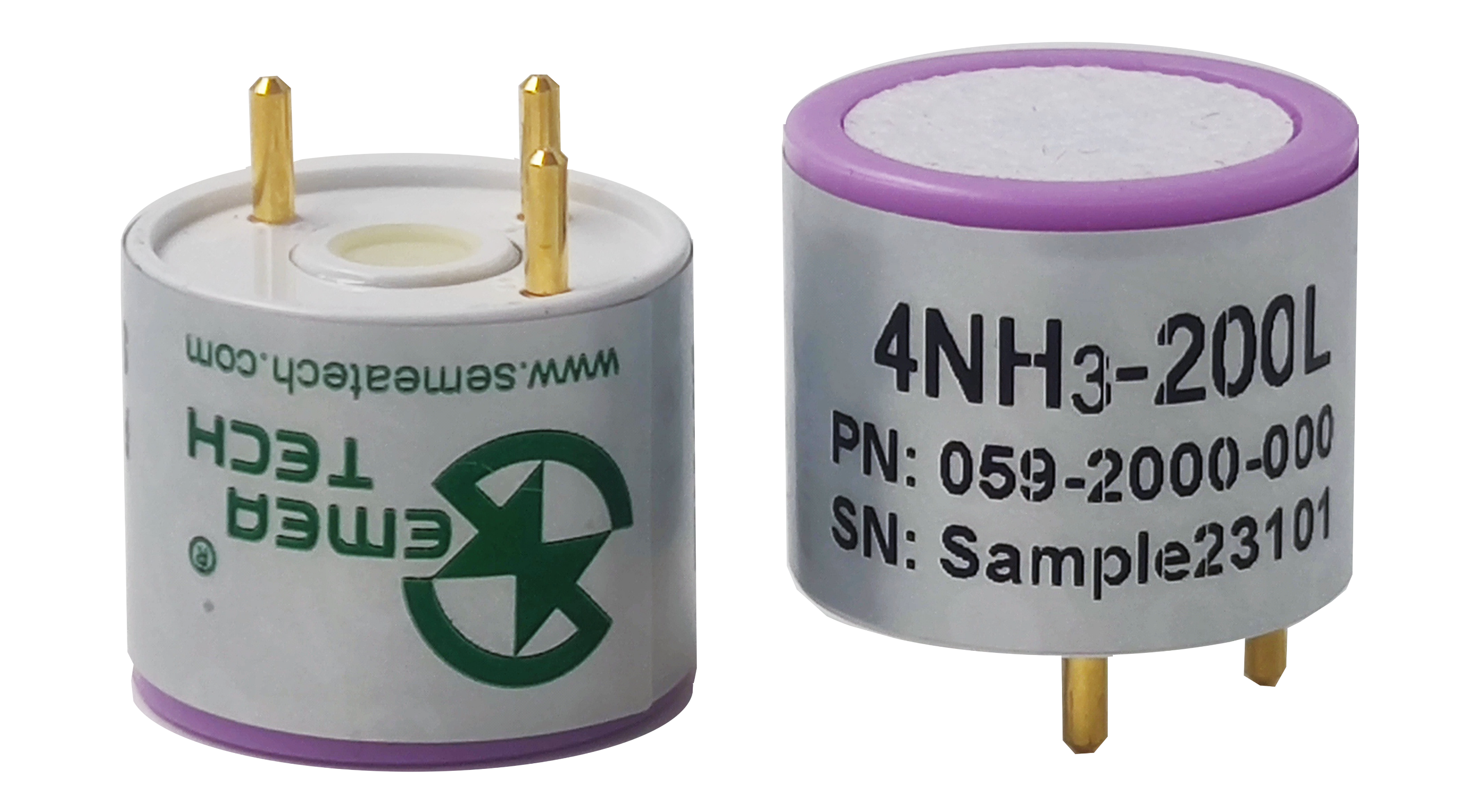

4-Series NH3-200L

Gas Sensors

059-2000-000
  • /media/djcatalog2/images/item/17/4-series-nh3-200l.png
    • NEW !
    Manufacturer: Semeatech

    NH3 sensor - 200 ppm - long life

    Services

    Professional and fast quote

    Product usually available on stock

    Delivery:
    • ASK for "Just in time" delivery

    More questions?

    Description

    Rather than the traditional depleting Ammonia sensors, this is a non-depleting and long-life Ammonia sensor for the measurement of Ammonia concentration in gas phase. It can be used as a pin-to-pin replacement for the standard 4-series electrochemical Ammonia sensors made by other manufacturers.

    Performance

    Nominal Range 0 ~ 200 ppm
    Maximum Overload 400 ppm
    Sensitivity (20℃) 0.090 ± 0.018 μA/ppm
    Response Time (T90) ≤ 75 s
    Zero Signal (20℃) < ±0.4 μA
    Baseline Shift (-40℃ ~ 40℃) < 3 ppm
    Resolution 1 ppm
    Linearity Linear up to 200 ppm
    Bias Voltage 0 mV

    • Filter by Refrigerant
      R717 (Ammonia)
    • Applications
    • Brands
      Semeatech®
    • Technology
      Electrochemical
    • Type
      Sensing Element
