Maxtec oxygen sensors are recognized as the number one choice for sensor replacement by hospitals and equipment manufacturers worldwide. No matter the application, you can trust Maxtec sensors to provide longer life and more stable readings to keep your equipment running smoothly.

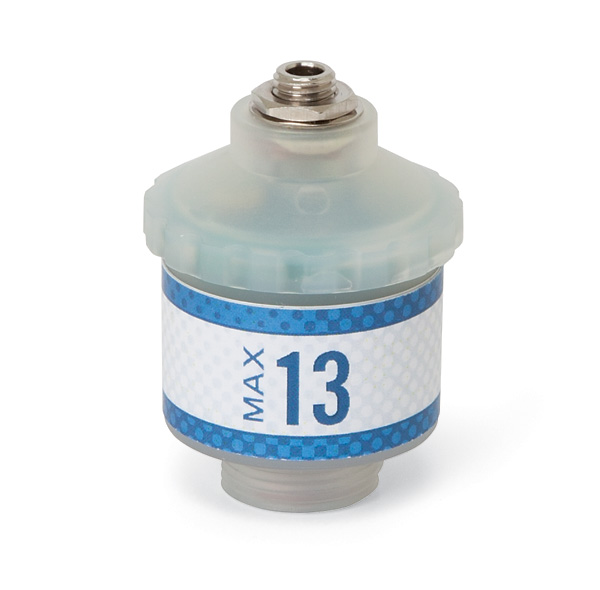

Part Number R115P10

14 months warranty

SPECS

• Range of Measurement: 0 to 100%
• Output Range: 13.0 to 16.5 mV
• Zero Offset: ≤ 0.25 mV
• Response Time: ≤ 12 s
• Linearity: ≤ 3%
• Expected Lifetime: > 1,000,000 %O2 hours
• Temperature Compensation: NTC
• Operational Temperature Range: 10° to 40°C
• Storage Temperature Range: -20° to 50°C
• Humidity Range: 0% to 99% RH, non-condensing
• Ambient Pressure Range: 700-1250 mbar
• Interference: PER EN ISO 80601-2-55
• Electrical Interface: 3.5mm mono jack

REPLACEMENT FOR

• Analytical Industries [PSR-11-917-J]
• City Technology [MOX-2]
• Covidien [4-020933-00, 7820 Monitor, 7200 Vent]
• Datascope [Anestar S]
• EnviteC [OOM-102-1]
• HillRom [6735142]
• Invivo [9445 Sensor]
• MSA [406931, MiniOX 3000, MiniOX II, MiniOX III]
• Mercury Medical [10-103-05]
• Pacifitech [PT-11A]
• Philips (Respironics) [Criterion Vent, Espirit Vent Lifecare (#PLV-102), 37-079 Sensor]
• Precision Medical [PM5900, 504877]
• Teledyne [R17MED #C-43690, R17MED #C-43690]
• Teleflex (Hudson) [5567, V-11]
• VTI [100580]
• Viasys [66030 Sensor, 6400 Vent, 8400 Vent, VIP Vent]
