MPS™ Flammable MINI

Gas Sensors


  • /media/djcatalog2/images/item/9/mps-flammable-mini.jpg

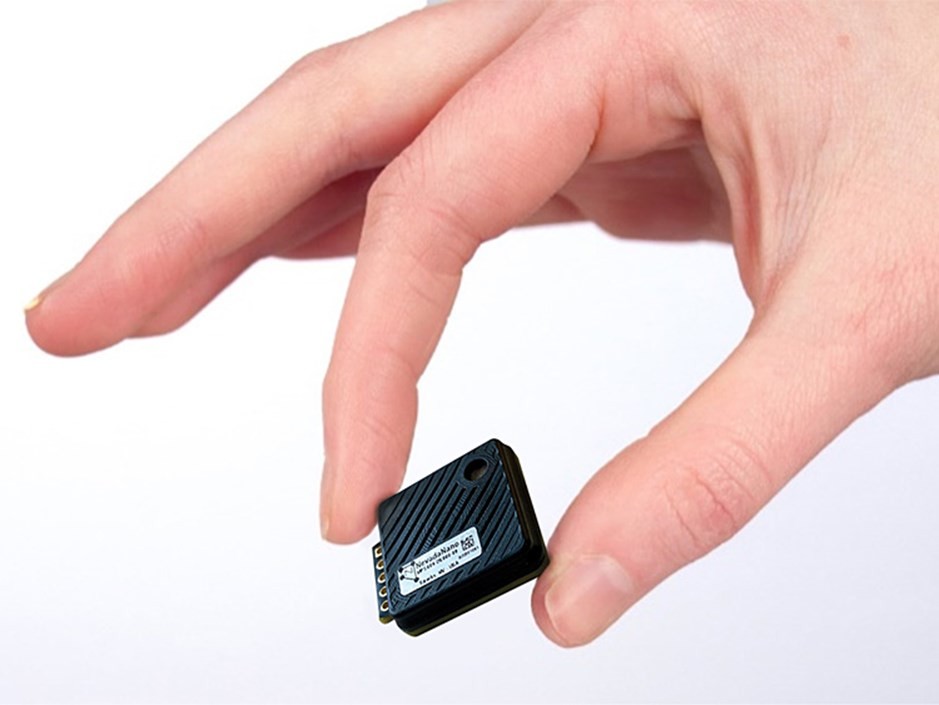

  • /media/djcatalog2/images/item/9/mps-flammable-mini.1.jpg

    Manufacturer: NevadaNano

    MINI Flammable Gas Sensor Delivering TrueLEL

      • Automatic multi-gas accuracy in real-time
      • Built-in environmental compensation
      • Extremely poison resistant
      • No calibration required
      • 15+ year lifetime
      • Low power — 29 mW average
      • Built-in self-test for fail-safe operation
    Services
    Professional and fast quote
    Product usually available on stock

    Delivery:

    • ASK for "Just in time" delivery

    More questions?

    +39 02 3340 0846 or Contact us

    Questions?

    +39 02 3340 0846
    or Contact us

    Description

    MPS™ Flammable Mini Gas Sensor
    by NevadaNano

    Rapid detection and precise measurement of over a dozen gases and gas mixtures, all with factory-calibrated accuracy.

    Request more info

    Features

    • Gas Detected
      butane, ethane, hydrogen, isobutane, isobutylene, isopropanol, methane, methyl ethyl ketone, octane, pentane, propane, propylene, toluene, xylene
    • No field calibration
      Immunity to saturation and poisoning and no field calibration eliminates the prohibitive cost of quarterly calibration trips & sensor replacements.
    • Highly accurate gas detection
      Resolution to 0.1% LEL with built-in environmental compensation for temperature, relative humidity, and pressure for near-zero false positives.
    • Very wide operating range & self-testing capability
      -40°C to 75°C operating range with up to 100% relative humidity. Built-In Self-Test (BIST) capability continuously evaluates the system to ensure it is operating to specification.
      • 15-year sensor life
        Unparalleled 15-year sensor life means low total cost of ownership and ensures uninterrupted monitoring.
        Feature MPS™ 3.0 MPS™ 4.0* MPS™ 5.0
        No required field calibration ✔ ✔ ✔
        Immune to poisoning ✔ ✔ ✔
        Immune to saturation ✔ ✔ ✔
        TrueLEL™ multi-gas detection ✔ ✔ ✔
        15-year sensor life ✔ ✔ ✔
        Power-On-Self-Test (POST) ✔ ✔ ✔
        Built-In-Self-Test (BIST) ✔ ✔ ✔
        UART Digital Output ✔ ✔ ✔
        Analog Data Output ✔ ✔ ✔
        Detects flammable gas during start-up   ✔ ✔
        Includes watchdog timer     ✔
        Power consumption 29mW 29mW 27.3 mW
        Supply voltage 3.3 - 5.0 ±5% VDC 3.3 - 5.0 ±5% VDC 3.0 - 5.0 ±5% VDC

        Accuracy and Sensitivity

        MPS™ Flammable Gas Sensor Precision

        With a remarkable resolution of 0.1 %LEL (Lower Explosive Limit), the MPS™ flammable gas sensors showcases its incredible precision. This means it can detect even the slightest changes in gas concentration, ensuring your safety and providing early warnings when needed. When every detail matters, trust Nevadanano’s sensors to deliver the utmost accuracy in monitoring flammable gases.

        Speed

        The MPS™ flammable gas sensors boasts lightning-fast response times, with a remarkable T90 of under 20 seconds. This means it can rapidly detect and provide precise measurements in the blink of an eye when it comes to potentially dangerous gas levels. Speed and accuracy are our top priorities, ensuring your safety and peace of mind in critical situations.

        Measurement range

        The MPS™ flammable gas sensors are designed to thrive in diverse environments, with an impressive operational range. It can operate reliably in temperatures ranging from a frigid -40°C to a scorching 75°C, ensuring versatility in various conditions. With a humidity tolerance spanning from 0% to 100% relative humidity (%RH), it’s equipped to handle moisture variations. Additionally, it comfortably operates under pressures between 80 kPa and 120 kPa. This broad environmental operating range showcases the sensor’s robustness and adaptability for your gas detection needs.

        Operating Principle

        The MPS™ Mini Flammable Gas Sensor’s transducer is a micro-machined membrane with an embedded Joule heater and resistance thermometer. The MEMS transducer is mounted on a PCB and packaged inside a rugged enclosure open to ambient air. Presence of a flammable gas causes changes in the thermodynamic properties of the air/ gas mixture that are measured by the transducer. Sensor data are processed by patent-pending algorithms to report an accurate concentration and classify the flammable gas.

        TrueLEL GAS DETECTION
        Gas Formula Detection Range Accuracy
        (0-50 %LEL)
        butane C4H10 0-100 %LEL ±5 %LEL
        ethane C2H6 0-100 %LEL ±5 %LEL
        hydrogen H2 0-100 %LEL ±5 %LEL
        isobutane HC(CH3)3 0-100 %LEL ±5 %LEL
        isobutylene C4H8 0-100 %LEL ±5 %LEL
        isopropanol C3H8O 0-100 %LEL ±10 %LEL
        methane CH4 0-100 %LEL ±3 %LEL
        methyl ethil ketone C4H8O 0-100 %LEL ±5 %LEL
        octane C8H18 0-100 %LEL ±5 %LEL
        pentane C5H12 0-100 %LEL ±5 %LEL
        propane C3H8 0-100 %LEL ±6 %LEL
        propylene C3H6 0-100 %LEL ±5 %LEL
        toluene C7H8 0-100 %LEL ±12 %LEL
        xilene C8H10 0-100 %LEL ±12 %LEL

        Accuracy guaranteed for methane and hydrogen across full environmental range. Other gases typically meet the published tolerances across the full environmental range, but are guaranteed only near standard conditions. The MPS Mini Flammable Gas Sensor is capable of detecting most common flammable gases/vapors.

        Industries and Applications

        • Oil Exploration

          The MPS™ Flammable Gas Sensors can significantly contribute to safety, environmental compliance, and operational efficiency in the oil exploration industry by detecting and monitoring flammable gases at drilling sites and exploration facilities.

        • Production

          The MPS™ Flammable Gas Sensors enhances safety in oil and gas production by detecting gas leaks, monitoring emissions, and protecting personnel and equipment. It ensures compliance with regulations, optimizes operations, and enables remote monitoring for efficiency.

        • Processing and Refining

          In processing and refining operations in the oil and gas industry, the MPS™ Flammable Gas Sensors provides critical safety measures by detecting gas leaks, monitoring emissions, and safeguarding personnel and equipment. It ensures regulatory compliance, enhances operational efficiency, and enables remote monitoring for streamlined processes.

        • Distribution and Transportation

          In distribution and transportation within the oil and gas industry, the MPS™ Flammable Gas Sensors plays a vital role in ensuring safety by detecting gas leaks, especially during the storage and transportation of flammable gases. It helps prevent accidents, protect personnel, and maintain compliance with safety regulations. These sensors are a key tool for enhancing the safe and efficient distribution and transportation of oil and gas products.

        Consider the MPS™ Sensor Evaluation Kit

        Test our accurate, calibration-free sensor technology before scaling up.
