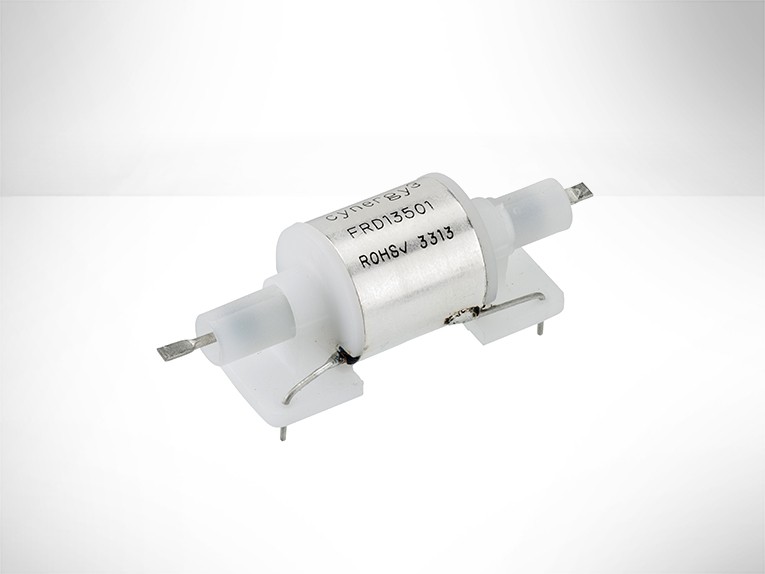

FRD13000 Series

High Voltage Relays


  • /media/djcatalog2/images/item/13/frd13000-series.jpg

    Manufacturer: Sensata Cynergy3
    • Screened RF Reed relays
    • Voltage Rating: 8kVdc
    • Max. Carry DC: 6Amps
      • Fully Screened Coil for Low RF Loss
      • Up to 9kVDC and 6A at 30MHz
      • Ideal for HF Antenna Tuning Applications
      • Custom Design Facility
    Services
    Professional and fast quote
    Product usually available on stock

    Delivery:

    • ASK for "Just in time" delivery

    More questions?

    +39 02 3340 0846 or Contact us

    Questions?

    +39 02 3340 0846
    or Contact us

    Description

    The FRD13000 Series features a complete RF screen around the coil assembly, for a low loss transmission path, resulting in better carry current at elevated temperatures for this open frame series. An anti-corona sleeve is fitted around the reed switch for improved RF voltage isolation.

    This type is widely used in HF Antenna Tuning Unit (ATU) applications.
