FRS12000 Series

High Voltage Relays

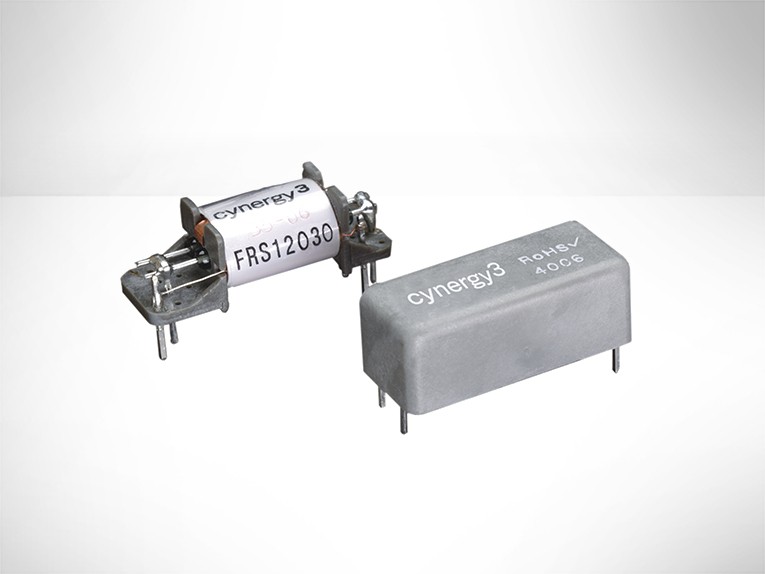

  • /media/djcatalog2/images/item/13/frs12000-series.jpg

    Manufacturer: Sensata Cynergy3
    • Miniature Screened Relay
    • Voltage Rating: 2kVdc
    • Max. Carry DC: 5Amps
      • Up to 3kV Isolation
      • 5A Carry Current (up to 30MHz)
      • Excellent RF Characteristics
      • Designed for HF Applications
      • Compact Package on 0.1" Pin Pitch
      • Custom Design Facility
    Services
    Professional and fast quote
    Product usually available on stock

    Delivery:

    • ASK for "Just in time" delivery

    More questions?

    +39 02 3340 0846 or Contact us

    Questions?

    +39 02 3340 0846
    or Contact us

    Description

    High current capability of the FRS12000 Series is achieved through the use of two reed switches in parallel. Open frame and covered construction are available, depending on voltage isolation requirements.

    The series uses materials with exceptional RF and temperature performance characteristics and, in addition, the coils are partially screened offering extended RF performance over the HF band.
