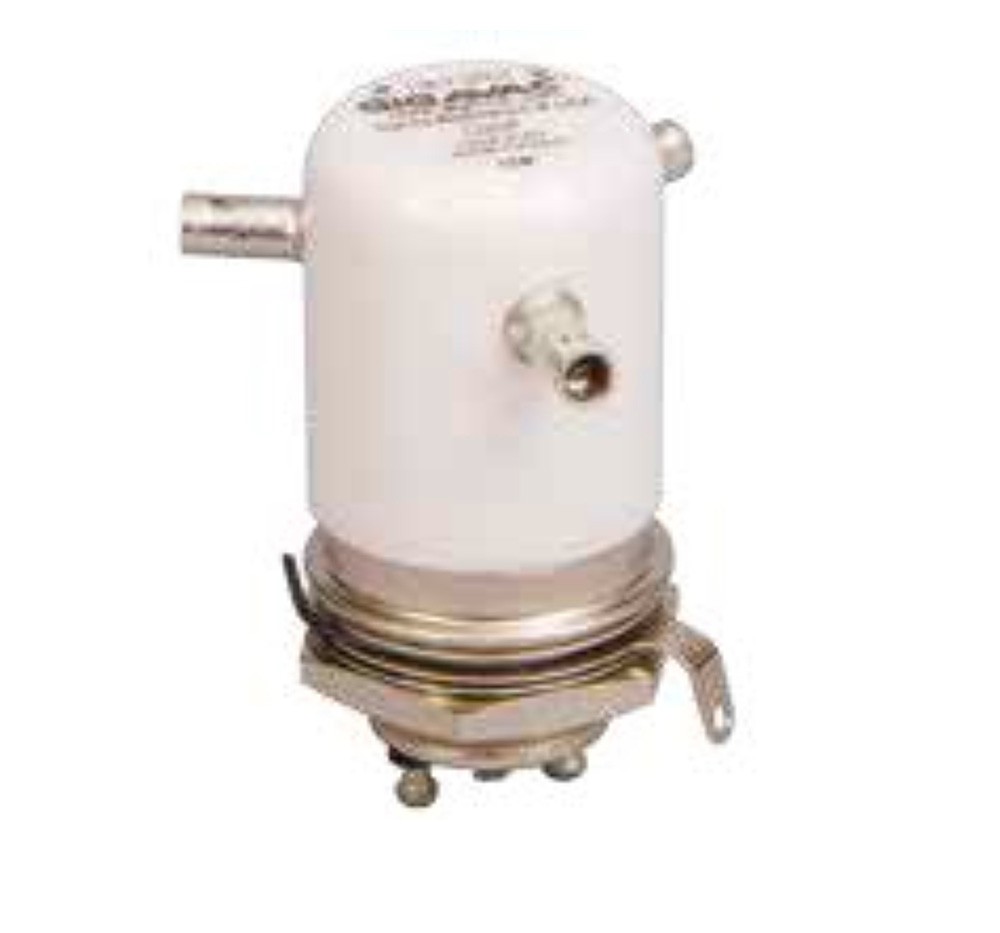

G8 relay

High Voltage Relays


  • /media/djcatalog2/images/item/6/g8.jpg

    Manufacturer: Sensata Gigavac
    • Single Pole Double Throw relay
    • Voltage Rating: 15kVdc
    • Max. Carry DC or 60Hz: 30Amps
      • Durable tungsten contacts improve load switching capability
      • Excellent alternative in RF circuits
      • Mounting options in any axis
      • Solder or convenient threaded HV connections
    Services
    Professional and fast quote
    Product usually available on stock

    Delivery:

    • ASK for "Just in time" delivery

    More questions?

    +39 02 3340 0846 or Contact us

    Questions?

    +39 02 3340 0846
    or Contact us

    Description

    Single Pole Double Throw relays offer a normally open and a normally closed contact set in one relay. The moveable contact transfers continuity from one stationary contact to the other when the coil is energized or de-energized. Voltage isolation is then between opposing stationary contact and the moveable contact.

    As with our other High Voltage Relays GIGAVAC offers several design styles of vacuum and gas filled High Voltage Relays. Vacuum or gas as a dielectric each offer unique advantages depending on the application.

    Complete specifications can be found by downloading the PDF datasheet below.

    Documentation
