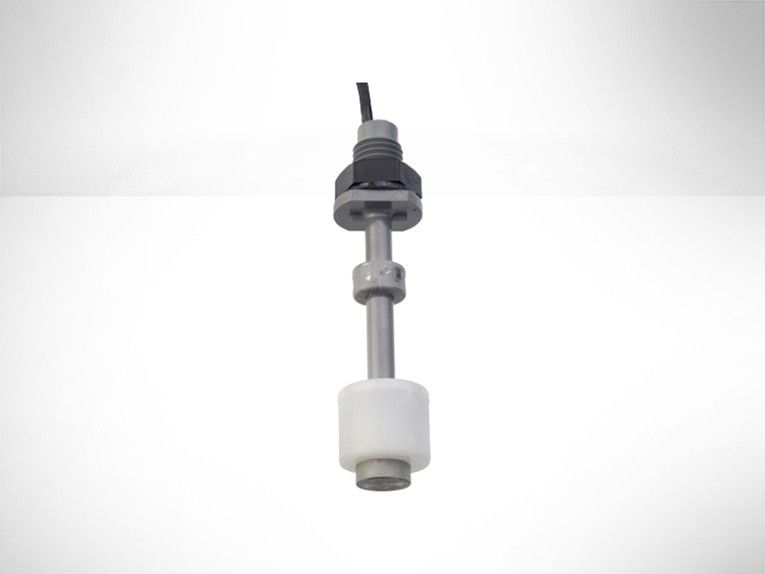

The RSF100 Series are miniature vertical float switches that can be fitted from the outside of a tank, via a compression seal, so do not require access to the inside of the tank for fitting. The small diameter float (21.5mm) means that this switch can be used in applications where there is very little space.

	Standard parts	Approvals	Electrical connection	Material	Mount	Output	Power capacity
	RSF104Y100JN	WRAS NSF	Fly lead	Polypropylene	External	SPNO	25VA
	RSF104H100JN	NSF WRAS	Fly lead	Polypropylene	External	SPNO	100VA
	RSF103Y100JN	WRAS	Fly lead	Nylon	External	SPNO	25VA
	RSF103H100JN	WRAS	Fly lead	Nylon	External	SPNO	100VA
	RSF106Y100JN	WRAS	Fly lead	PPS	External	SPNO	25VA
	RSF106Y050TV	WRAS	Fly lead	PPS	External	SPNO	25VA
	RSF106H100JN	WRAS	Fly lead	PPS	External	SPNO	100VA
	RSF106H050TV	WRAS	Fly lead	PPS	External	SPNO	100VA
	RSF108Y100JN	UL	Fly lead	Polypropylene	External	SPNO	25VA
	RSF108H100JN	UL	Fly lead	Polypropylene	External	SPNO	100VA
	RSF103YNP	WRAS	M12 connector	Nylon	External	SPNO	25VA
	RSF103HNP	UL	M12 connector	Nylon	External	SPNO	100VA
	RSF104YNP	NSF WRAS	M12 connector	Polypropylene	External	SPNO	25VA
	RSF104HNP	NSF WRAS	M12 connector	Polypropylene	External	SPNO	100VA
	RSF106YNP	WRAS	M12 connector	PPS	External	SPNO	25VA
	RSF106HNP	WRAS	M12 connector	PPS	External	SPNO	100VA
	RSF108YNP	UL	M12 connector	Polypropylene	External	SPNO	25VA
	RSF108HNP	UL	M12 connector	Polypropylene	External	SPNO	100VA
	RSF107Y100GN	NSF UL	Fly lead	PVDF	External	SPNO	25VA
	RSF107H100GN	NSF UL	Fly lead	PVDF	External	SPNO	100VA
	RSF107YNP	NSF UL	M12 connector	PVDF	External	SPNO	25VA
	RSF107HNP	NSF UL	M12 connector	PVDF	External	SPNO	100VA
	RSF107Y100GV	NSF UL	Fly lead	PVDF	External	SPNO	25VA
	RSF107H100GV	NSF UL	Fly lead	PVDF	External	SPNO	100VA
	RSF107YVP	NSF UL	Fly lead	PVDF	External	SPNO	25VA
	RSF107HVP	NSF UL	M12 connector	PVDF	External	SPNO	100VA
