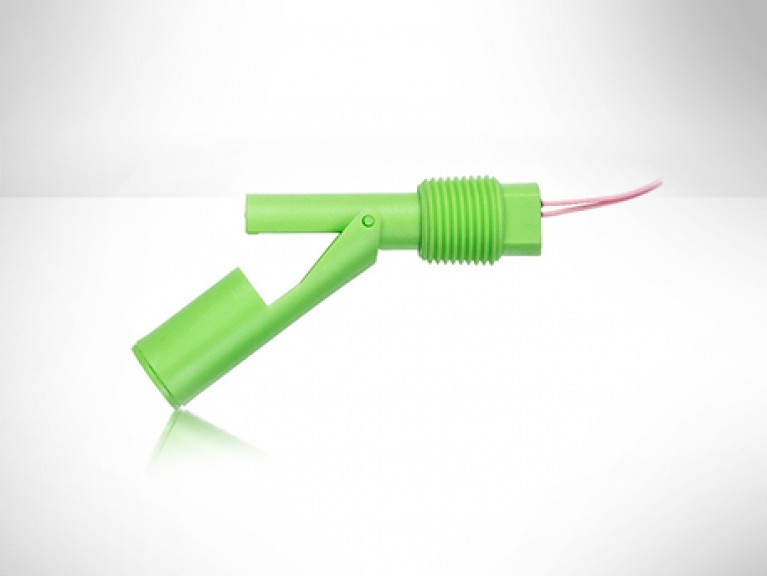

The RSF80 Series float switch is designed for external fitting, achieved with a 1/2" NPT taper thread. This avoids the need for access to the inside of the chamber and is ideally suited to applications where space or fitting time are prime considerations. They are manufactured in a variety of materials to suit most commonly used liquids. The switch action may be reversed by rotating the device through 180º.  Typical applications are Diesel Level for Generators, Hydraulic Oil and Gearbox Oil Level.

	Standard parts	Approvals	Electrical connection	Material	Mount	Output	Power capacity
	RSF83H100R	WRAS	Fly lead	Nylon	External	SPNO	100VA
	RSF83Y100R	WRAS	Fly lead	Nylon	External	SPNO	25VA
	RSF84H100R	NSF WRAS	Fly lead	Polypropylene	External	SPNO	100VA
	RSF84Y100R	NSF WRAS	Fly lead	Polypropylene	External	SPNO	25VA
	RSF86H050T	WRAS	Fly lead	PPS	External	SPNO	100VA
	RSF86H100R	WRAS	Fly lead	PPS	External	SPNO	100VA
	RSF86Y050T	WRAS	Fly lead	PPS	External	SPNO	25VA
	RSF86Y100R	WRAS	Fly lead	PPS	External	SPNO	25VA
	RSF88H100R	UL	Fly lead	Polypropylene	External	SPNO	100VA
	RSF88Y100R	UL	Fly lead	Polypropylene	External	SPNO	25VA
	RSF83HP	WRAS	M12 connector	Nylon	External	SPNO	100VA
	RSF83YP	WRAS	M12 connector	Nylon	External	SPNO	25VA
	RSF84HP	NSF WRAS	M12 connector	Polypropylene	External	SPNO	100VA
	RSF84YP	NSF WRAS	M12 connector	Polypropylene	External	SPNO	25VA
	RSF86HP	WRAS	M12 connector	PPS	External	SPNO	100VA
	RSF86YP	WRAS	M12 connector	PPS	External	SPNO	25VA
	RSF88HP	UL	M12 connector	Polypropylene (UL)	External	SPNO	100VA
	RSF88YP	UL	M12 connector	Polypropylene (UL)	External	SPNO	25VA
	RSF87Y100G	NSF UL	Fly lead	PVDF	External	SPNO	25VA
	RSF87H100G	NSF UL	Fly lead	PVDF	External	SPNO	100VA
	RSF87YP	NSF UL	M12 connector	PVDF	External	SPNO	25VA
	RSF87HP	NSF UL	M12 connector	PVDF	External	SPNO	100VA
