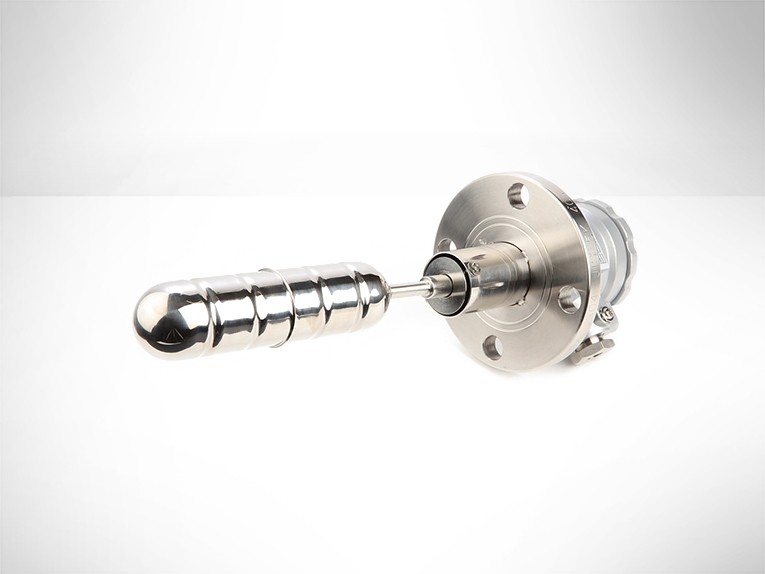

The SH-5 Series are 1-1/2" - 150lb ANSI flange mount float operated level switches. This design uses a pivoted float arm with a magnet on the inboard end. This magnet when moved by the rising float arm interacts with another magnet in the switch enclosure to give a snap action operation. Two switching options are available using either microswitches or reed switches, for different switching power and operating temperature ranges.

	Standard parts	Action	Electrical connection	Material	Mount	Output	Power capacity
	SH-5151	Single Level	Terminal block	Stainless Steel	Flange	SPDT	60VA
	SH-5151RH	Single Level	Terminal block	Stainless Steel	Flange	SPDT	60VA
	SH-5653	Single Level	Terminal block	Stainless Steel	Flange	SPDT	60VA
	SH-5653RH	Single Level	Terminal block	Stainless Steel	Flange	SPDT	60VA
	SH-5052	Single Level	Terminal block	Stainless Steel	Flange	SPDT	60VA
	SH-5052RH	Single Level	Terminal block	Stainless Steel	Flange	SPDT	60VA
