Manufacturer: Sensata Cynergy3
External Mount G1" Float Switch
-
- External mount via G1"
- High buoyancy float
- 20 bar max working pressure
- DIN 43650 connection
Services
Description

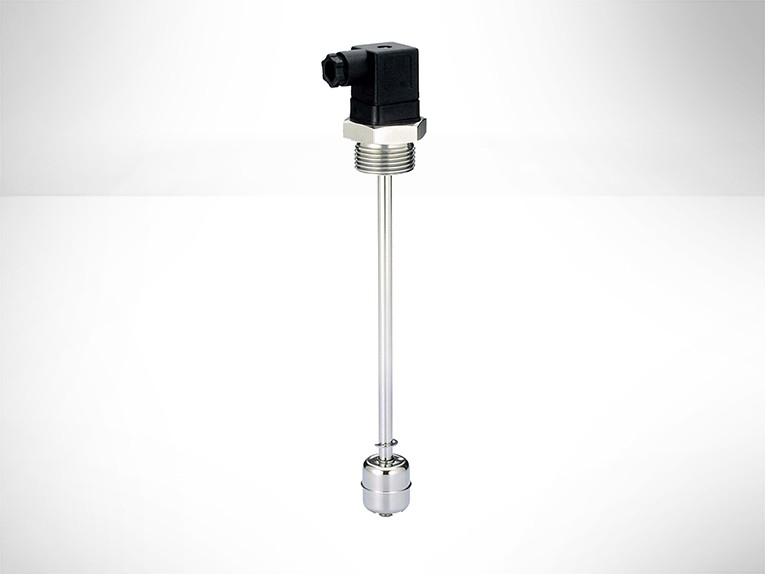

The SSV66A-1G Series float switch are top mount level switches with G1" (1"BSP) thread, enables this switch to be fitted to a tank through a G1" boss, without requiring access to the inside of the tank. The DIN 43650 connection makes for easy connection.
| Standard parts | Electrical connection | Material | Mount | Output | Power capacity | |
 |
SSV66A100E1GP
|
DIN 43650
|
Stainless Steel
|
External
|
SPNO
|
25VA
|
 |
SSV66A150E1GP
|
DIN 43650
|
Stainless Steel
|
External
|
SPNO
|
25VA
|
 |
SSV66A200E1GP
|
DIN 43650
|
Stainless Steel
|
External
|
SPNO
|
25VA
|
