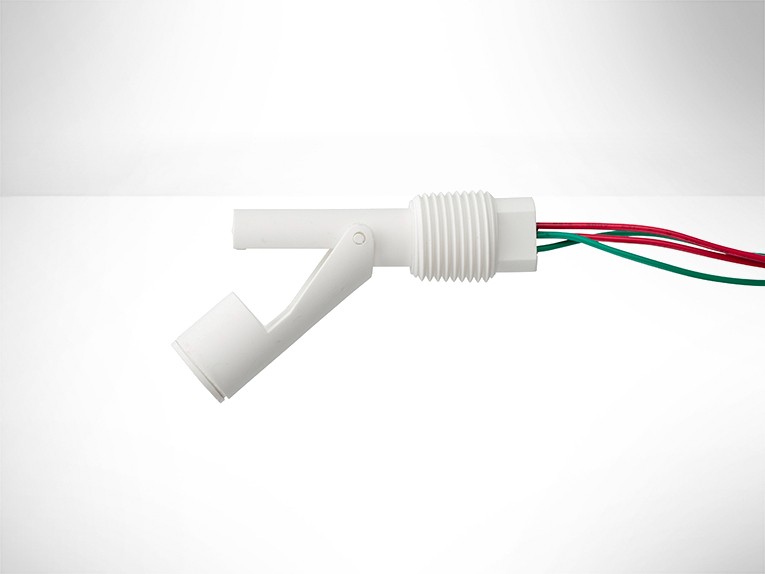

The TSF80 Series float switch incorporates a high specification thermistor, so this device is now capable of sensing fluid level and temperature. Fitting is from the outside of the tank via a 1/2"NPT thread, so does not require access to the inside of the tank. Typical applications include vending machines, steam baths, saunas and evaporator units.

	Standard parts	Action	Electrical connection	Material	Mount	Power capacity	Thread
	TSF83H100D	Single Level	Fly lead	Nylon	External	100VA	1/2"NPT
	TSF83Y100D	Single Level	Fly lead	Nylon	External	25VA	1/2"NPT
	TSF84H100D	Single Level	Fly lead	Polypropylene	External	100VA	1/2"NPT
	TSF84Y100D	Single Level	Fly lead	Polypropylene	External	25VA	1/2"NPT
	TSF86H050T	Single Level	Fly lead	PPS	External	100VA	1/2"NPT
	TSF86H100D	Single Level	Fly lead	PPS	External	100VA	1/2"NPT
	TSF86Y050T	Single Level	Fly lead	PPS	External	25VA	1/2"NPT
	TSF86Y100D	Single Level	Fly lead	PPS	External	25VA	1/2"NPT
	TSF88H100D	Single Level	Fly lead	Polypropylene	External	100VA	1/2"NPT
	TSF88Y100D	Single Level	Fly lead	Polypropylene	External	25VA	1/2"NPT
