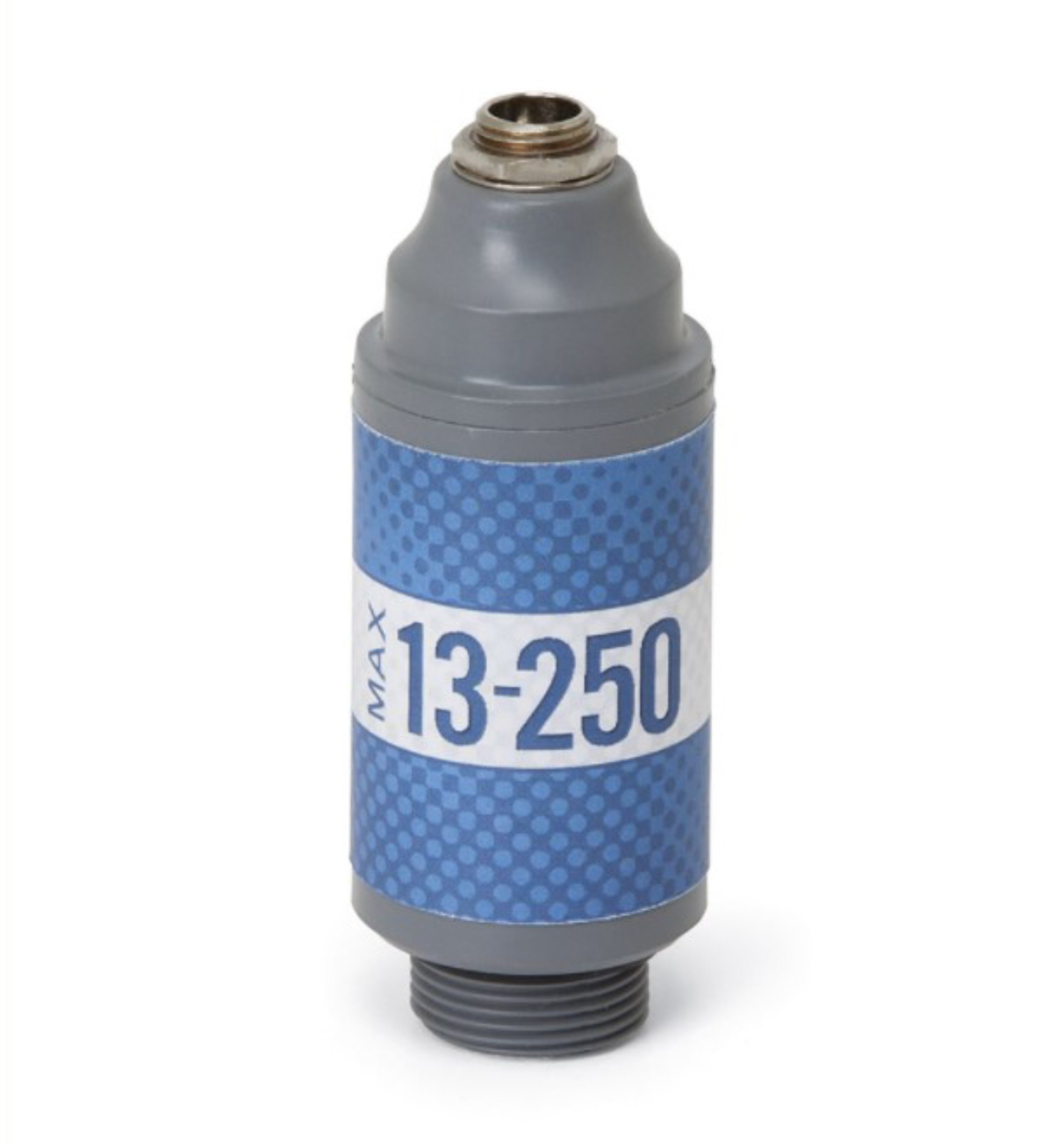

The Max-13-250 is a high quality and long lasting electrochemical medical oxigen sensor.

With its 1.500.000 %O2 hours, it lasts for twice the average life of the competitors. To give an idea: with 21% concentration of oxigen, the expected working life is more than 8 years.

• Part Number R125P07
• 24 months warranty

Maxtec oxygen sensors are recognized as the number one choice for sensor replacement by hospitals and equipment manufacturers worldwide. No matter the application, you can trust Maxtec sensors to provide longer life and more stable readings to keep your equipment running smoothly. The MAX-250 / MAX-550 Series use a patented weak-acid technology to provide a more stable signal, longer sensor life, and withstand high levels of CO2 and other acidic gases. Maxtec also offers lead-free and ultrasonic gas-sensing products.

SPECS

• Range of Measurement: 0 to 100% of O2
• Output Range: 12.0 to 17.0 mV
• Zero Offset: ≤ 0.50 mV
• Response Time: ≤ 15 s
• Linearity: ± 1.0%
• Expected Lifetime: >1,500,000 %O2 hours
• Temperature Compensation: < ± 3.0%
• Operational Temperature Range: 5˚ to 40˚C
• Storage Temperature Range: -15˚C to 50˚C
• Humidity Range: 5% to 95% RH, non-condensing
• Interference: per EN ISO 80601-2-55
• Electrical Interface: 3.5mm mono jack

REPLACEMENT FOR

• Analytical Industries [PSR-11-917-J]
• Covidien [4-020933-00, 7820 Monitor, 7200 Vent]
• Datascope [Anestar S]
• Elemaster [MVM - Mechanical Ventilator Milano]
• HillRom [6735142]
• Invivo [9445 Sensor]
• MSA [406931, MiniOX 3000, MiniOX II, MiniOX III]
• Mercury Medical [10-103-05]
• Pacifitech [PT-11A]
• Philips (Respironics) [Criterion Vent, Espirit Vent Lifecare (#PLV-102), 37-079 Sensor]
• Teledyne [R17 #C-43690]
• Teleflex (Hudson) [5567]
• Vexos  MVM VENTILATOR [Max-13-250]
• VTI [100580]
• Viasys [66030 Sensor, 6400 Vent, 8400 Vent, VIP Vent]
