Maxtec oxygen sensors are recognized as the number one choice for sensor replacement by hospitals and equipment manufacturers worldwide. No matter the application, you can trust Maxtec sensors to provide longer life and more stable readings to keep your equipment running smoothly.

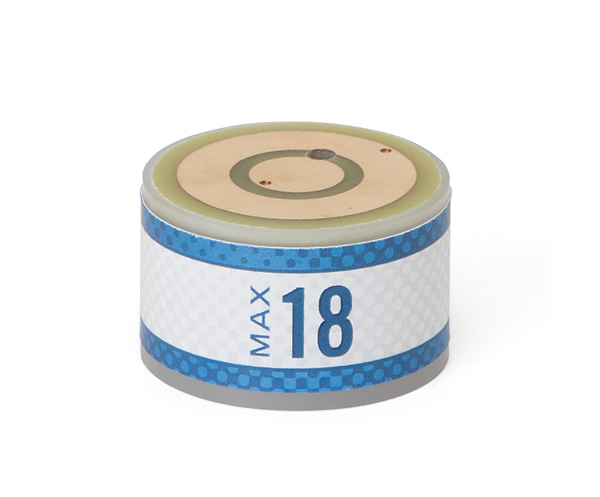

Part Number R116P40

12 months warranty

SPECS

• Range of Measurement: 0 to 100% O2
• Output (in air): 200 ± 40 µA
• Zero Offset: Less than 5 µA
• Response Time: ≤ 13 seconds at 30° C
• Linearity: < 3%
• Expected Lifetime: > 250,000 %O2 hours
• Operational Temperature Range: 0° to 40° C
• Storage Temperature Range: -20° to 50° C
• Humidity Range: Up to 100% RH
• Ambient Pressure Range: 600 - 1750 mBar
• Interference: Per EN ISO 80601-2-55
• Electrical Interface: 1mm x 3.5mm Pins

REPLACEMENT FOR

• Analytical Industries [PSR-11-33-1]
• Mercury Medical [10-103-01]
• Pacifitech [PT-02]
• Teledyne [C1R #B-39022]
• Teleflex (Hudson) [5569, V-02, 5525, 5528, 5529, 5550, 5552]
