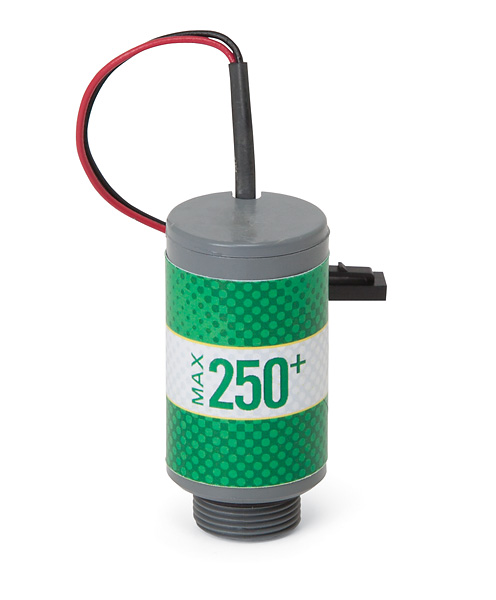

High level performance sensor for Scuba applications.

Maxtec oxygen sensors are recognized as the number one choice for sensor replacement by hospitals and equipment manufacturers worldwide. No matter the application, you can trust Maxtec sensors to provide longer life and more stable readings to keep your equipment running smoothly.

The MAX-250 / MAX-550 Series use a patented weak-acid technology to provide a more stable signal, longer sensor life, and withstand high levels of CO2 and other acidic gases. Maxtec also offers lead-free and ultrasonic gas-sensing products.

Part Number R125P02-013

24 months warranty

SPECS

• Range of Measurement: 0 to 100% O2
• Output Range: 10.0 to 15.5 mV
• Zero Offset: ≤ 0.50 mV
• Response Time: ≤ 15 s
• Linearity: ± 1.0%
• Expected Lifetime: > 1,500,000 %O2 hours
• Temperature Compensation: < ± 3.0%
• Operational Temperature Range: 5˚ to 40˚C
• Storage Temperature Range: -15˚ to 50˚C
• Humidity Range: 5% to 95% RH non-condensing
• Interference: Per EN ISO 80601-2-55
