Micro Dial Flowmeter

Medical Equipment


  • /media/djcatalog2/images/item/8/micro-dial-flowmeter.jpg
  • /media/djcatalog2/images/item/8/micro-dial-flowmeter.1.jpg
  • /media/djcatalog2/images/item/8/micro-dial-flowmeter.2.jpg
  • /media/djcatalog2/images/item/8/micro-dial-flowmeter.3.jpg

    Manufacturer: Maxtec®

    Device for gradually weaning neonates from supplemental oxygen dependency with 12 months warranty

    Services

    Professional and fast quote

    Product usually available on stock

    Delivery:
    • ASK for "Just in time" delivery

    More questions?

    Description

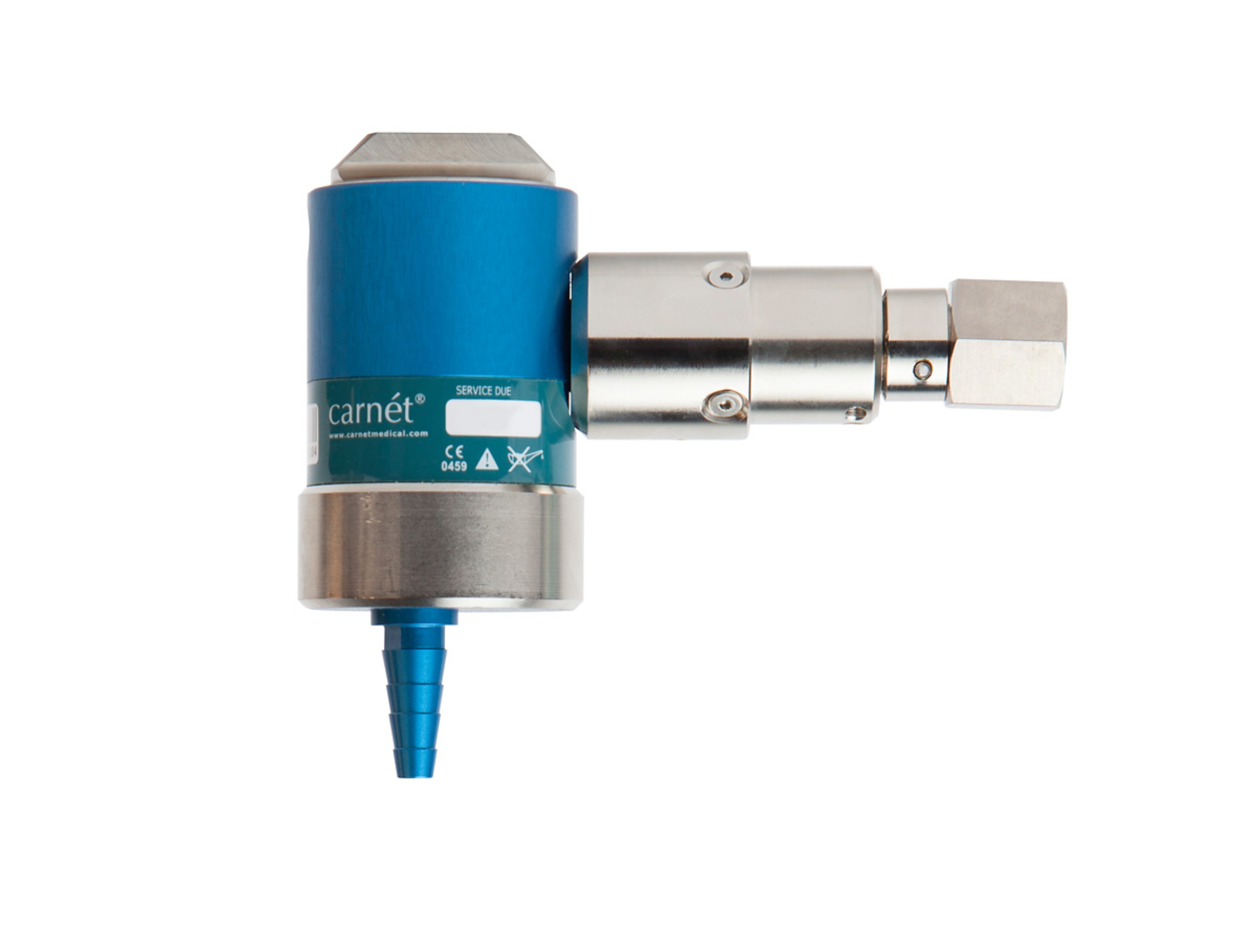

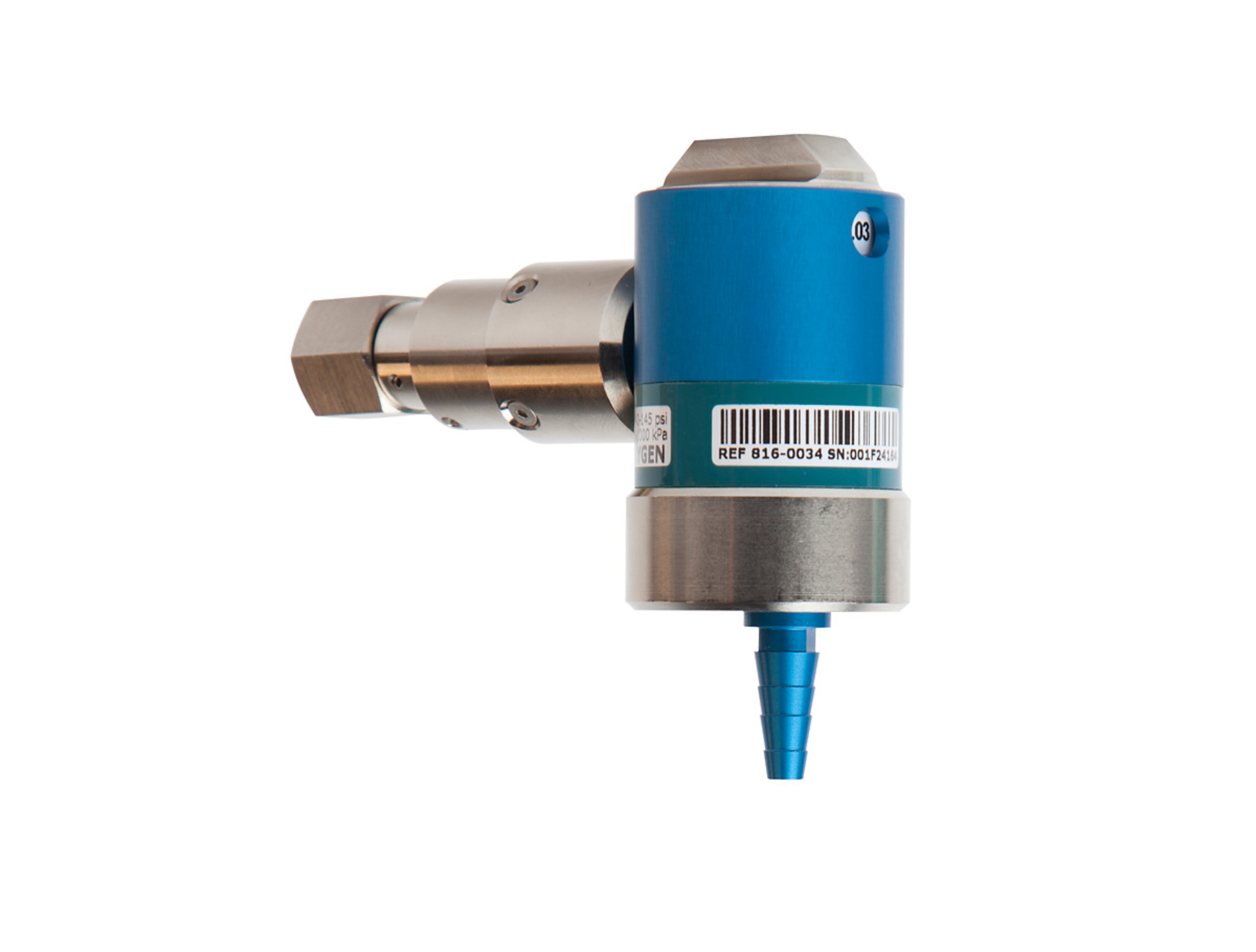

    The Micro-Dial Flowmeter is the ultimate device for gradually weaning neonates from supplemental oxygen dependency.

    The ability to reduce the flow in 10 micro-stages of therapy enables the smoothest transition from therapy, until the baby is ready to cope with atmospheric oxygen levels.

    • Pre-regulation of inlet pressure
    • Two stage filtration
    • Consistent and repeatable flow selection with “Sure-Click” settings
    • Deliver ultra-low flow ranges with accuracy
    • Probe is free to rotate, minimizing the risk of cannula tube occlusion
    • Durable metal body prevents mechanical damage



    FLOW RANGE SETTINGS 1 2 3 4 5 6 7 8 9 10 11 OFF
    Range A (LPM) .02 .03 .05 .08 .12 .20 .30 .50 .75 1.00 3.00 OFF
    Range A (LPM Fraction) 150 133 120 112 18 15 13 12 34 1 3 OFF
    Range A (CC’s) 20 30 50 80 120 200 300 500 750 1000 3000 OFF
    Range E (LPM) .01 .02 .03 .04 .05 .06 .07 .08 .09 .10 1.00 OFF
    Range A (LPM Fraction) 1100 150 133 125 120 116 114 112 111 110 1 OFF
    Range E (CC’s) 10 20 30 40 50 60 70 80 90 100 1000 OFF
