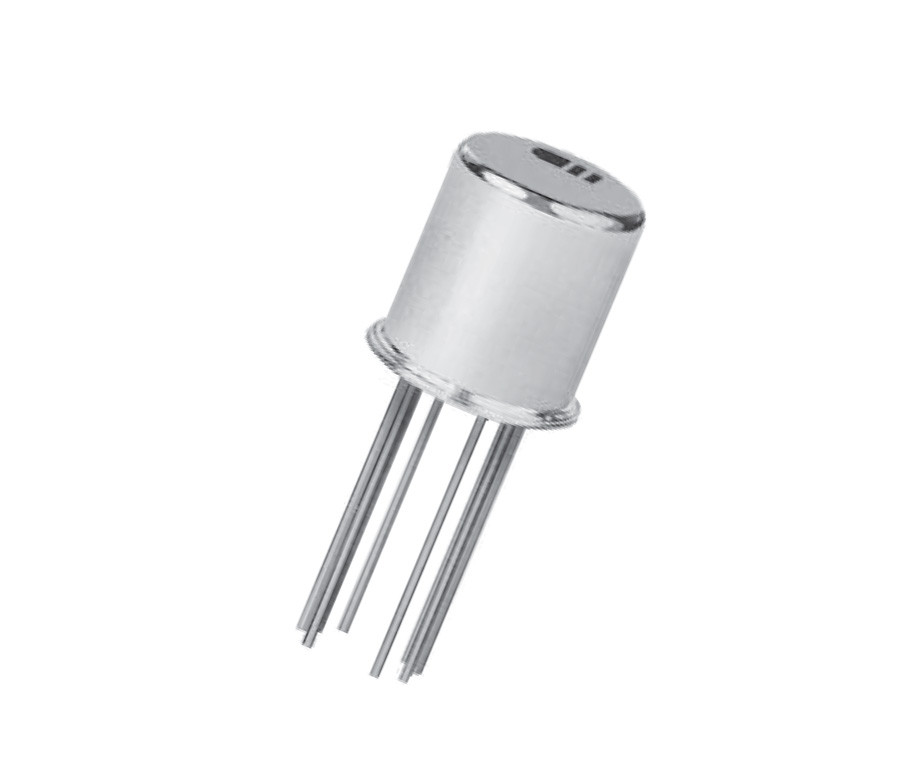

1MS, 1MSD, 1MSDD

MIL-SPEC Power Relays


  • /media/djcatalog2/images/item/18/1ms-1msd-1msdd.jpg
    • NEW !
    Manufacturer: TE Connectivity

    TO-5, Sensitive, Single Pole, Electrically Held, 1 Amp - M39016/10, M39016/25, M39016/26

      • 1MS - Sensitive TO-5 High Performance Relay - Qualified to MIL-R-39016/10
      • 1MSD - Sensitive TO-5 Diode Suppressed High Performance Relay - Qualified to MIL-R-39016/25
      • 1MSDD - Sensitive TO-5 Diode Suppressed/Protected High Performance Relay - Qualified to MIL-R-39016/26
      • High shock & vibration ratings
      • Spreader pad
      • Excellent RF switching
    Services
    Professional and fast quote
    Product usually available on stock

    Delivery:

    • ASK for "Just in time" delivery

    More questions?

    +39 02 3340 0846 or Contact us

    Questions?

    +39 02 3340 0846
    or Contact us

    Description

    • Contact Arrangement —
      1 Form C (SPDT)
    • Contact Material —
      Stationary —
      Gold/platinum/palladium/silver alloy
      (gold plated)
      Moveable —
      Gold/platinum/palladium/silver alloy
      (gold plated)
    • Contact Resistance —
      Before Life — 100 milliohms max.
      (measured @ 10 mA @ 6 Vdc)
      After Life — 200 milliohms max.
      (measured @ 1 A @ 28 Vdc)
    • Mechanical Life Expectancy —
      1 million operations
    • Coil Voltage — 5 to 40 Vdc
    • Coil Power — 506 mW max. @ 25°C
    • Duty Cycle — Continuous
    • Pick-up Voltage — Approximately
      50% of nominal coil voltage
    • Pick-up Sensitivity —
      40 mW max. @ 25°C

    For further technical details please refer to datasheet below.
