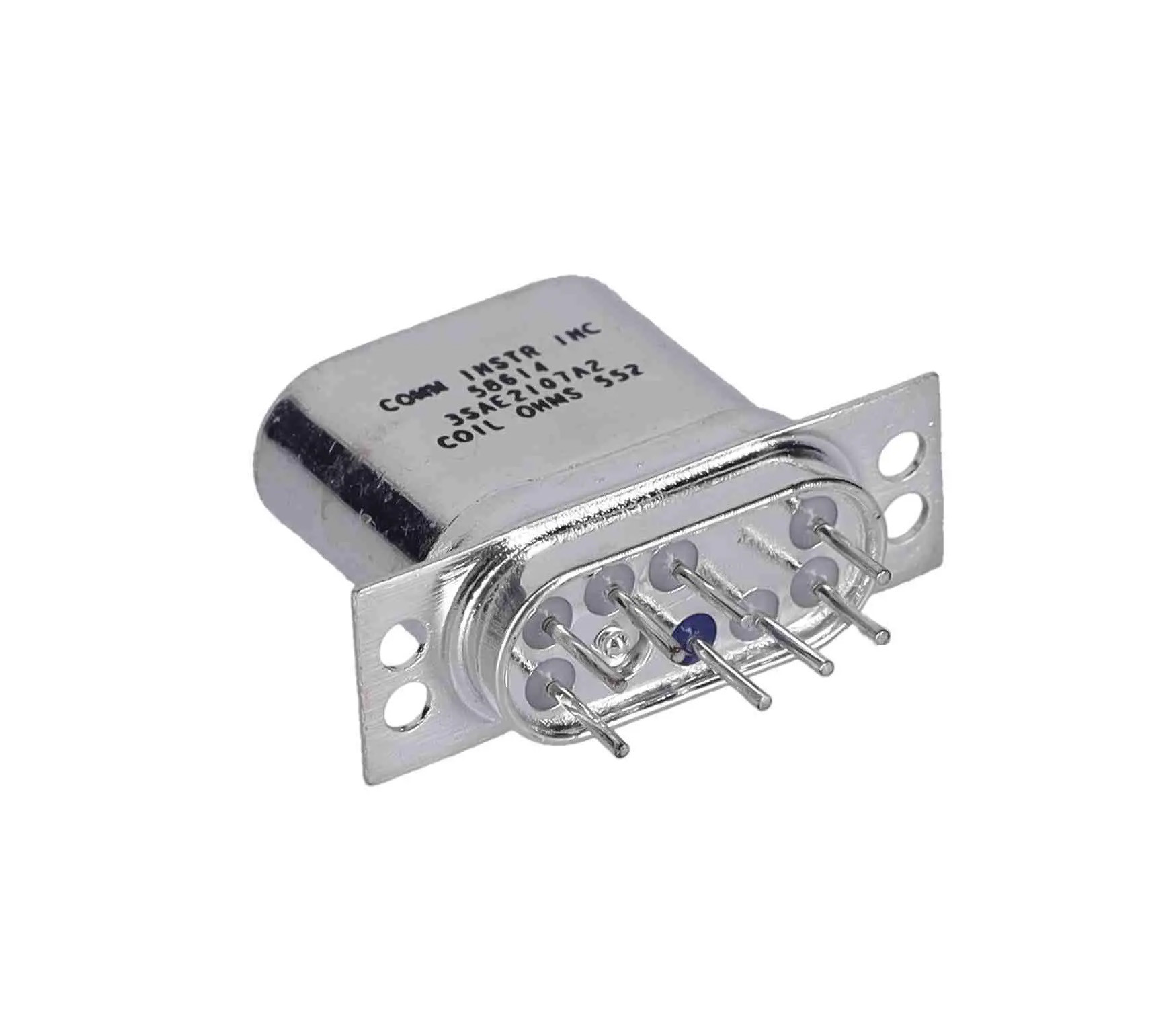

3SAE, 3SAC

MIL-SPEC Power Relays


  • /media/djcatalog2/images/item/18/3sae-3sac.jpg
    • NEW !
    Manufacturer: TE Connectivity

    Crystal Can, Double Pole, Electrically Held, 2 Amps and Less

      • Small lightweight crystal-can type
      • 0.25 cubic inch, 0.60 ounces
      • Power or low-level switching
      • 20G to 2000 Hz vibration capability
    Services
    Professional and fast quote
    Product usually available on stock

    Delivery:

    • ASK for "Just in time" delivery

    More questions?

    +39 02 3340 0846 or Contact us

    Questions?

    +39 02 3340 0846
    or Contact us

    Description

    The TE Connectivity line of crystal-can relays is backed by years of experience and millions of relays operating in the field.

    • Contact Ratings —
      DC resistive — 2 amps at 28 volts
      DC inductive — 1 amp at 28 volts,
      L/R < .025
      Low-level — 50 μA at 50 mV
      Peak AC or DC
      AC resistive — 1.0 amp at 115 volts,
      case not grounded
      AC resistive — 0.25 amps at 115 volts,
      case grounded
    • Contact Resistance —
      0.050 ohms max. initial;
      0.100 ohms max. after life test
    • Life — 100,000 operations at rated
      load; 1,000,000 at low-level

    For further technical details please refer to datasheet below.
