3SBC, 3SCC

MIL-SPEC Power Relays

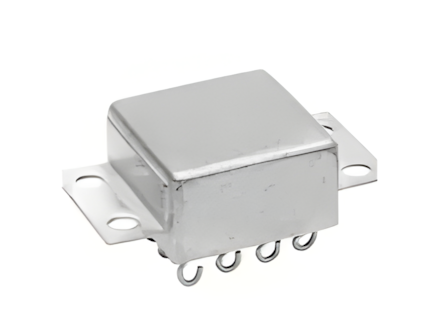

  • /media/djcatalog2/images/item/18/3sbc-3scc.png
    • NEW !
    Manufacturer: TE Connectivity

    .150 Grid Relays, Double Pole, Electrically Held, 2 Amps and Less

      • Low profile… only 0.32 inches high
      • Internal diode for coil transient suppression and transistor driven models available
      • Qualified to MIL-R-39016/13
      • RF designs available
    Services
    Professional and fast quote
    Product usually available on stock

    Delivery:

    • ASK for "Just in time" delivery

    More questions?

    +39 02 3340 0846 or Contact us

    Questions?

    +39 02 3340 0846
    or Contact us

    Description

    The .150 Grid-space relay — only 0.32 inches high — saves space in electronic packaging. The pin spacing allows you to insert the relay with no intermediate pin spreaders as well as meet applicable military specifications.

    Electrical Characteristics

    • Contact Ratings —
      DC resistive — 2 amps at 28 volts
      (50,000 operations)
      1 Amp @ 28 V (100,000 operations)
      DC inductive — 0.5 amps at 28 volts,
      200 mH
      AC resistive — 0.5 amps at 115 volts
      AC — 0.125 amps at 115 volts (case
      grounded)
      Low-level — 50 μA at 50 mV
      Peak AC or DC
    • Contact Resistance —
      0.050 ohms max.; 0.150 ohms after life test
    • Life — 100,000 operations at rated loads listed; 1,000,000 operations at low-level loads

    For further technical details please refer to datasheet below.
