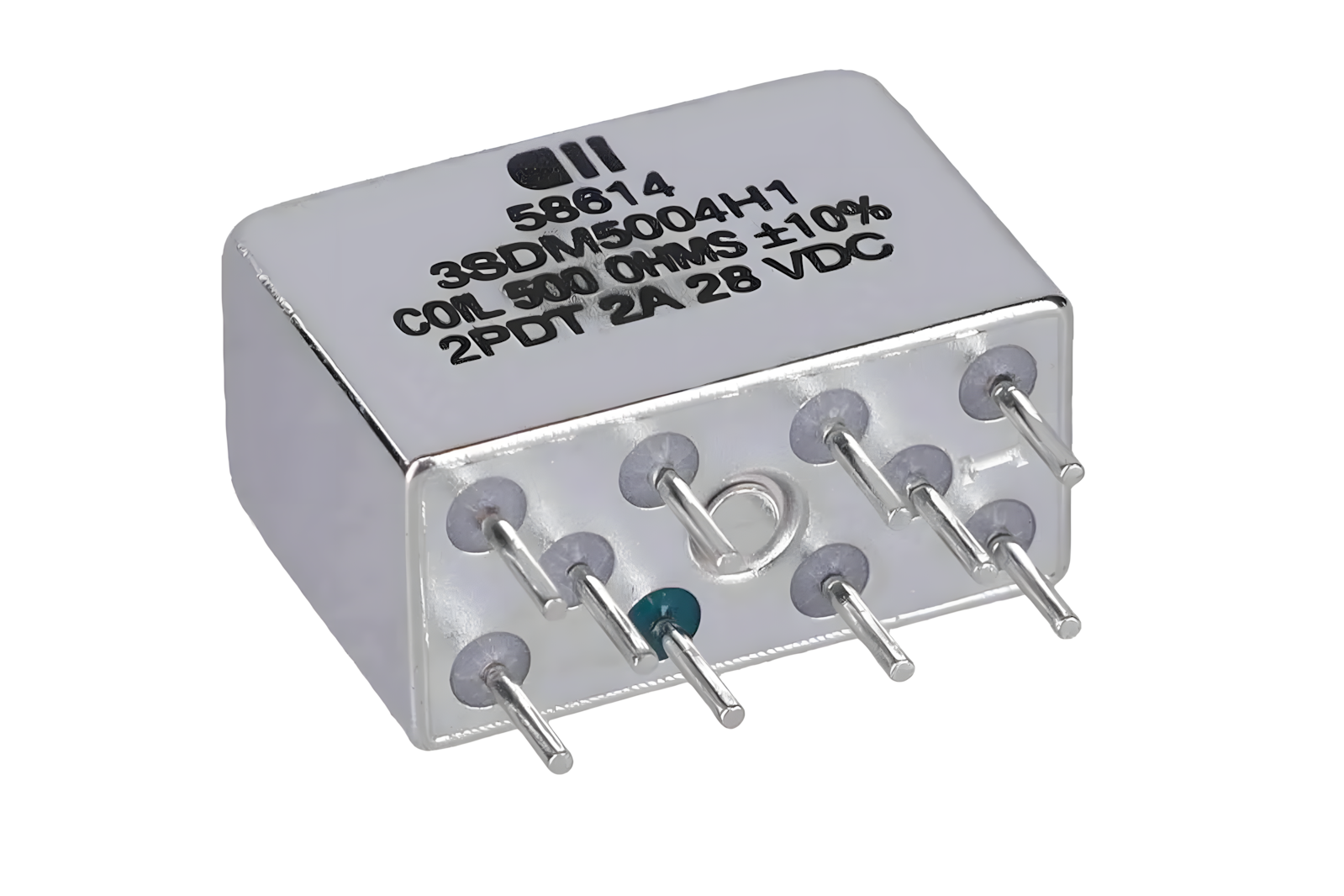

This magnetic latching relay maintains the high reliability attributes of the aerospace proven CII 3SAM relay family. By reducing the size of the coil and maintaining the contact system of the 3SAM, we can now offer a smaller 2 amp rated magnetic latching relay. The pulse operation can provide multiple hundred thousand operations in power saving circuits. The on or off circuits are maintained using no power until there is a need to switch the contacts. Suitable for matrix switches or relay trees, these versatile relays have contact systems capable of reliability switching high power or very low level signals in the same package. The relay’s unique circuit prevents it from ever hanging up in an off-center or neutral position.

• Contact Ratings —
  DC resistive — 2 amps at 28 volts
  Low-level — 50 μA at 50 mV DC or
  peak AC
• Contact Resistance —
  0.050 ohms initial;
  0.100 ohms after life test (High level)
  0.150 ohms after life test (Low level)
• Life —
  100,000 operations at rated load;
  1,000,000 operations at low-level

For further technical details please refer to datasheet below.
