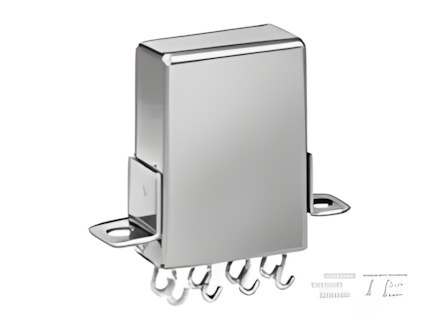

The TE Connectivity line of crystal-can relays is backed by years of experience and millions of relays operating in the field.

• Contact Arrangement —
  2 Form C
• Contact Material —
  Stationary —
  Bifurcated hardened silver alloy
  Moveable —
  Gold plated hardened alloy
• Contact Resistance —
  Before Life — 50 milliohms max.
  (measured at 10 mA @ 6 Vdc)
  After Life — 100 milliohms max.
  (measured @ 2 mA @ 28 Vdc)
• Mechanical Life Expectancy —
  50 million operations
• Coil Voltage —
  6.3 to 110 Vdc (FW, FWSA)
  1.8 to 40 Vdc (SF)
  2.8 to 40 Vdc (SFSA)
• Coil Power — 1.5 watts max. @ 25°C
• Duty Cycle — Continuous
• Pick-up Voltage — Approximately
  50% of nominal coil voltage
• Pick-up Sensitivity —
  250 mW (FW, FWSA)
  40 mW (SF)
  80 mW (SF5A)

For further technical details please refer to datasheet below.
