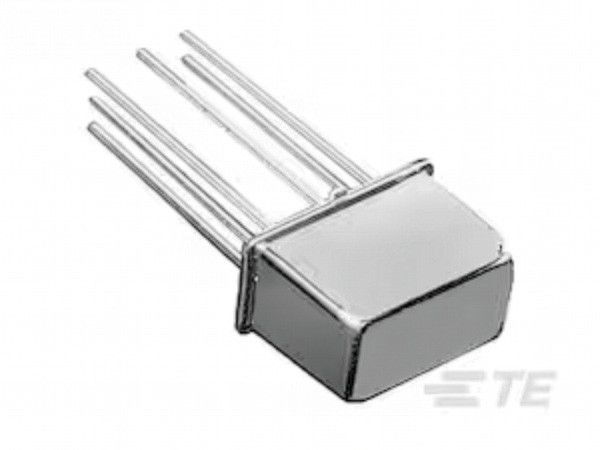

HC, HCD, HCS, HCSD

MIL-SPEC Power Relays

.100 Grid, Commercial, Double Pole, Electrically Held, 1 Amp

- HC, HCS - Standard / Sensitive .100 Grid Commercial Relay
- HCD, HCSD - Standard / Sensitive .100 Grid Diode Suppressed Commercial Relay

Services

Delivery:

Contact Arrangement —
2 Form C (DPDT)
Contact Material —
Stationary —
Gold/platinum/palladium/silver alloy
(gold plated)
Moveable —
Gold/platinum/palladium/silver alloy
(gold plated)
Contact Resistance —
Before Life — 100 milliohms max.
(measured @ 10 mA @ 6 Vdc)
After Life — 200 milliohms max.
(measured @ 1 A @ 28 Vdc)
Mechanical Life Expectancy —
1 million operations
Coil Voltage —
5 to 26.5 Vdc (HC/HCD)
5 to 48 Vdc (HCS/HCSD)
Coil Power —
HC/HCD — 660 mW max. @ 25°C
HCS/HCSD — 565 mW max. @ 25°C
Duty Cycle — Continuous
Pick-up Voltage — Approximately
70% of nominal coil voltage
Pick-up Sensitivity —
HC/HCD — 180 mW max. @ 25°C
HCS/HCSD — 90 mW max. @ 25°C

For further technical details please refer to datasheet below.
