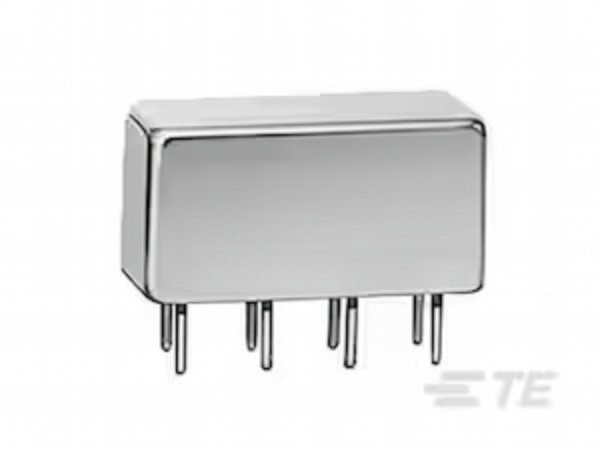

HFW, HMB, HMS

MIL-SPEC Power Relays

1/2 Size, Standard, Double Pole, Electrically Held, 2 Amps and Less - M39016/6, M39016/22, M39016/44

- HFW - Standard Half Size High Performance Relay Qualified to MIL-R-39016/6
- HMB - Bifilar Half Size High Performance Relay Qualified to MIL-R-39016/22
- HMS - Sensitive Half Size High Performance Relay Qualified to MIL-R-39016/44

Services

Delivery:

Contact Arrangement —
2 Form C (DPDT)
Contact Material —
Stationary —
Hardened silver alloy
Moveable —
Gold plated hardened silver alloy
Contact Resistance —
Before Life — 50 milliohms max.
(measured at 10 mA @ 6 Vdc)
After Life — 100 milliohms max.
(measured @ 2 A @ 28 Vdc)
Mechanical Life Expectancy —
50 million operations
Coil Voltage —
5 to 48 Vdc (HFW)
6 to 26.5 Vdc (HMB)
5 to 36 Vdc (HMS)
Coil Power — 1.4 watts max. @ 25°C
Duty Cycle — Continuous
Pick-up Voltage — Approximately
50% of nominal coil voltage
Pick-up Sensitivity @ 25°C —
145 to 260 mW (HFW)
325 mW (HMB)
100 to 125 mW (HMS)

For further technical details please refer to datasheet below.
