MS , MSD , MSDD

MIL-SPEC Power Relays

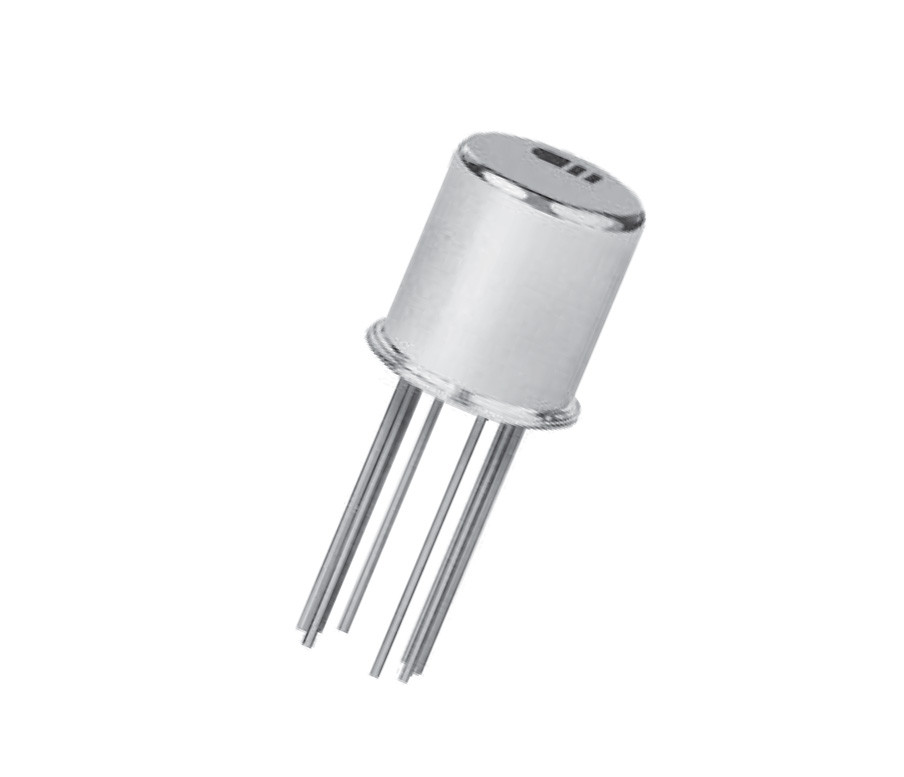

  • /media/djcatalog2/images/item/18/ms-msd-msdd.jpg
    • NEW !
    Manufacturer: TE Connectivity

    TO-5, Sensitive, Double Pole, Electrically Held, 1 Amp M39016/11, M39016/16, M39016/21

      • MS - Sensitive TO-5 High Performance Relay Qualified to MIL-R-39016/11
      • MSD - Sensitive TO-5 Diode Suppressed High Performance Relay Qualified to MIL-R-39016/16
      • MSDD - Sensitive TO-5 Diode Suppressed/Protected High Performance Relay Qualified to MIL-R-39016/21
      • Hermetically sealed
      • High shock & vibration ratings
      • Spreader pad
      • Excellent RF switching
    Services
    Professional and fast quote
    Product usually available on stock

    Delivery:

    • ASK for "Just in time" delivery

    More questions?

    +39 02 3340 0846 or Contact us

    Questions?

    +39 02 3340 0846
    or Contact us

    Description

    • Contact Arrangement —
      2 Form C (DPDT)
    • Contact Material —
      Stationary —
      Gold/platinum/palladium/silver alloy
      (gold plated)
      Moveable —
      Gold/platinum/palladium/silver alloy
      (gold plated)
    • Contact Resistance —
      Before Life — 100 milliohms max.
      (measured @ 10 mA @ 6 Vdc)
      After Life — 200 milliohms max.
      (measured @ 1 A @ 28 Vdc)
    • Mechanical Life Expectancy —
      1 million operations
    • Coil Voltage — 5 to 48 Vdc
    • Coil Power — 565 mW max. @ 25°C
    • Duty Cycle — Continuous
    • Pick-up Voltage — Approximately
      50% of nominal coil voltage
    • Pick-up Sensitivity —
      60 mW max. @ 25°C

    For further technical details please refer to datasheet below.
