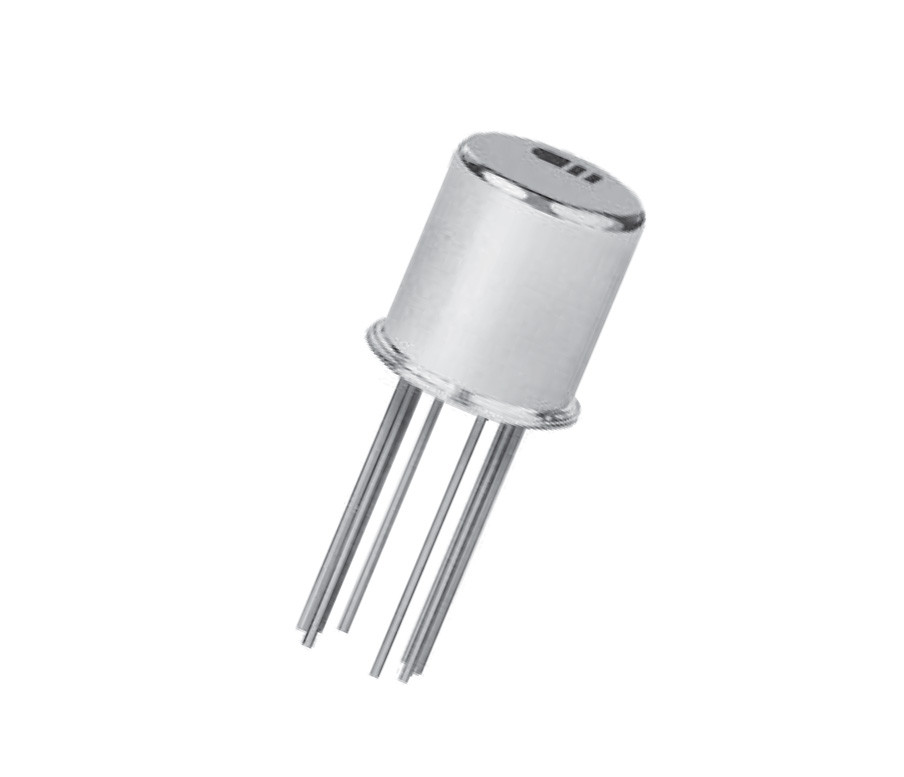

MIL-SPEC Power Relays

TO-5, Sensitive, Transistor Driven, Double Pole, Electrically Held, 1 Amp - M28776/3

- Transistor driver & suppression diode
- Hermetically sealed
- High shock & vibration ratings
- Spreader pads
- Excellent RF switching

Services

Delivery:

Contact Arrangement —
2 Form C (DPDT)
Contact Material —
Stationary —
Gold/platinum/palladium/silver alloy
(gold plated)
Moveable —
Gold/platinum/palladium/silver alloy
(gold plated)
Contact Resistance —
Before Life — 100 milliohms max.
(measured @ 10 mA @ 6 Vdc)
After Life — 200 milliohms max.
(measured @ 1 A @ 28 Vdc)
Mechanical Life Expectancy —
1 million operations
Coil Voltage — 5 to 48 Vdc
Coil Power — 565 mW max. @ 25°C
Duty Cycle — Continuous
Pick-up Voltage — Approximately
50% of nominal coil voltage
Pick-up Sensitivity —
60 mW max. @ 25°C

For further technical details please refer to datasheet below.
