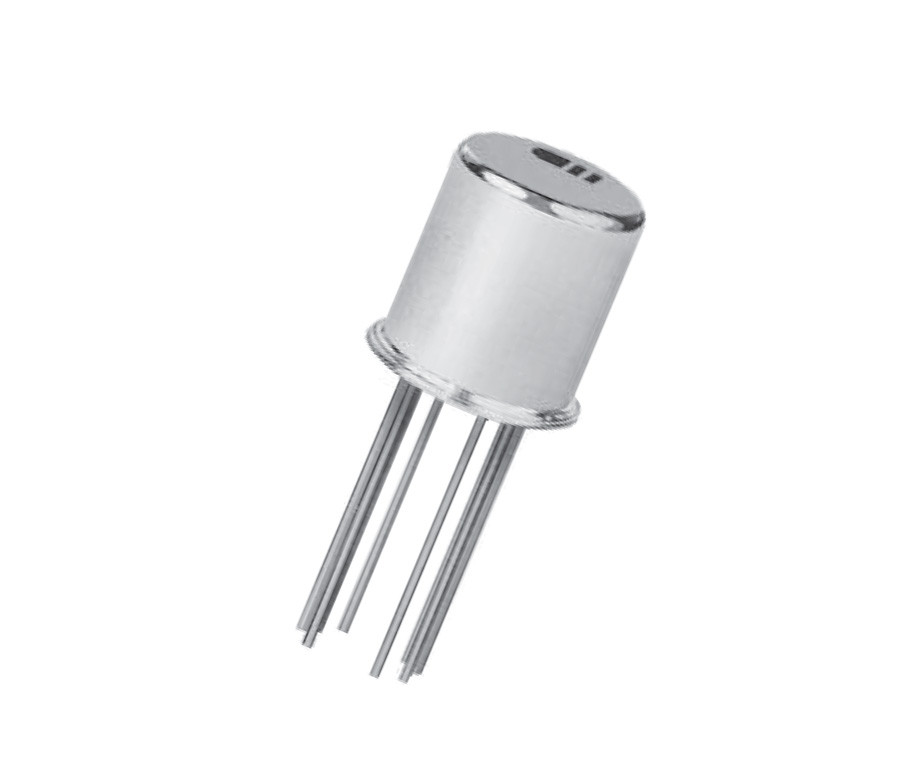

MSV, MSVD

MIL-SPEC Power Relays

TO-5, High Vibration, Double Pole, Electrically Held, 1 Amp

- MSV - Sensitive High Vibration TO-5 High Performance Relay
- MSVD - Sensitive High Vibration TO-5 Diode Suppressed High Performance Relay
- High shock & vibration ratings
- Spreader pad
- Excellent RF switching

Services

Delivery:

Contact Arrangement —
2 Form C (DPDT)
Contact Material —
Stationary —
Gold/platinum/palladium/silver alloy
(Gold plated)
Moveable —
Gold/platinum/palladium/silver alloy
(Gold plated)
Contact Resistance —
Before Life — 100 milliohms max.
(measured @ 10 mA @ 6 Vdc)
After Life — 200 milliohms max.
(measured @ 1 A @ 28 Vdc)
Mechanical Life Expectancy —
1 million operations
Coil Voltage — 5 to 26.5 Vdc
Coil Power — 370 mW max. @ 25°C
Duty Cycle — Continuous
Pick-up Voltage — Approximately
70% of Nominal Coil Voltage
Pick-up Sensitivity — 155 mW max. @ 25°C

For further technical details please refer to datasheet below.
