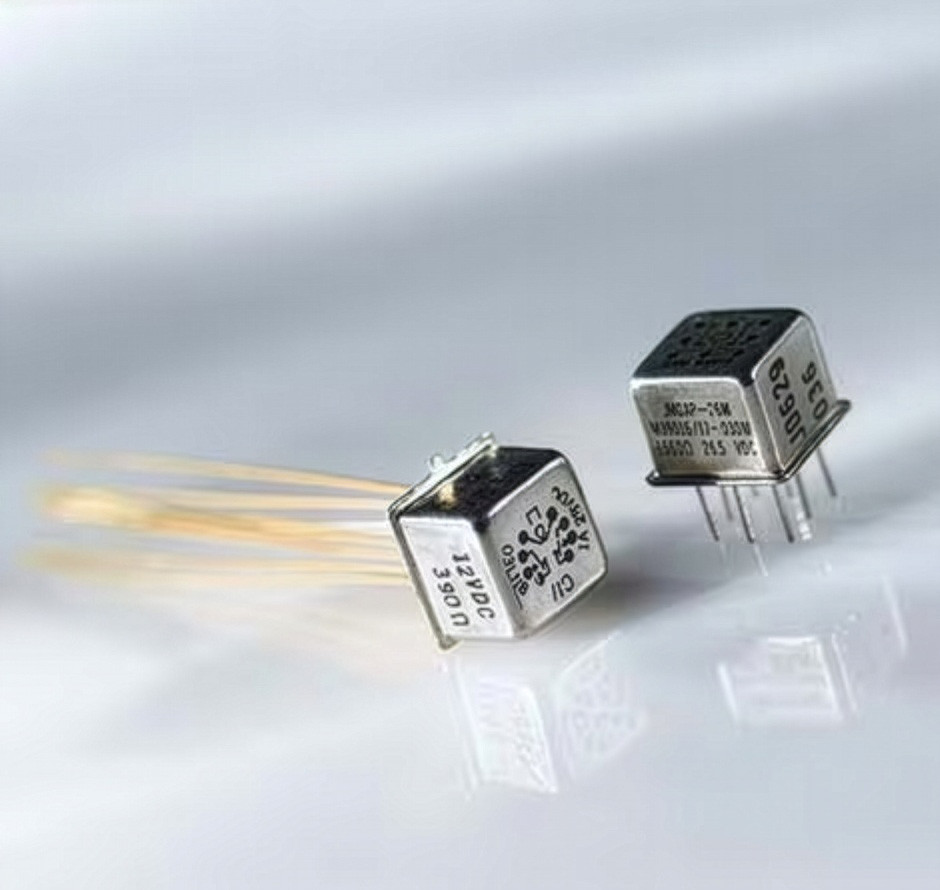

MW6 & MW6HP Models

MIL-SPEC Power Relays


  • /media/djcatalog2/images/item/18/mw6-mw6hp-models.jpg
    • NEW !
    Manufacturer: TE Connectivity

    6 GHz. Switching. Double Pole, Electrically Held, 1 Amp and Less

      • Contact Arrangement —
        2 Form C (DPDT)
      • Contact Resistance —
        Before life — 100 milliohms, max.
        (measured @ 10 mA @ 6 VDC)
        After life — 200 milliohms, max.
        (measured @ 1 A @ 28 VDC)
      • Mechanical Life Expectancy —
        10 million operations
      • Coil Voltages —
        5, 12, 18 & 26.5 VDC (MW6)
        5, 6, 9, 12, 18 & 26.5 VDC (MW6HP)
      • Coil Power (mW max. @ 25°C) —
        MW6 MW6S MW6HP MW6HPS
        675 565 673 563
      • Duty Cycle — Continuous
    Services
    Professional and fast quote
    Product usually available on stock

    Delivery:

    • ASK for "Just in time" delivery

    More questions?

    +39 02 3340 0846 or Contact us

    Questions?

    +39 02 3340 0846
    or Contact us

    Description

    Microwave Switching, Hermetically Sealed, DPDT MW6 & MW6HP Models 6 GHz. Switching.

    For further technical details please refer to datasheet below.
