MIL-SPEC Power Relays

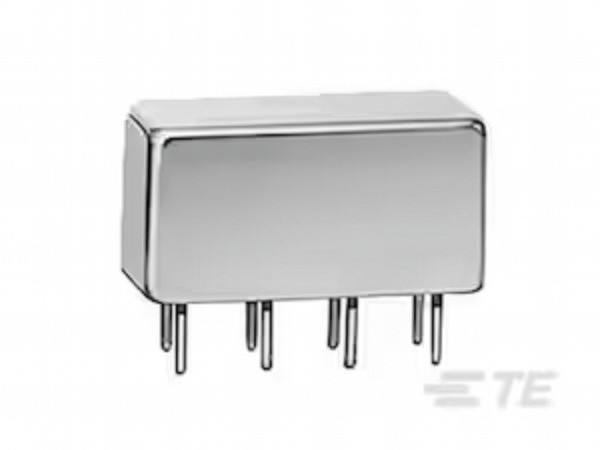

1/2 Size, Four Pole, Electrically Held, 2 Amps and Less - M39016/40

- Four Pole Half Size High Performance Relay
- Qualified to MIL-R-39016/40
- Hermetically sealed
- Optional terminals & mounting styles
- 4 form C Hi-density design

Services

Delivery:

Contact Arrangement —
4 Form C (4PDT)
Contact Material —
Stationary —
Gold plated hardened silver alloy
Moveable —
Gold plated hardened silver alloy
Contact Resistance —
Before Life — 50 milliohms max.
(measured at 10 mA @ 6 Vdc)
After Life — 100 milliohms max.
(measured @ 2 A @ 28 Vdc)
Mechanical Life Expectancy —
1 million operations min.
Coil Voltage — 6 to 26.5 Vdc
Coil Power — 2.6 watts max. @ 25°C
Duty Cycle — Continuous
Pick-up Voltage — Approximately
50% of nominal coil voltage
Pick-up Sensitivity — 475 mW

For further technical details please refer to datasheet below.
