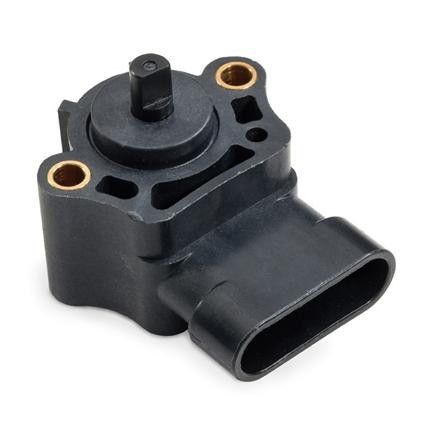

8360 Series

Hall Effect Sensors

  • media/djcatalog2/images/item/11/8360-series.jpg
  • NEW !
Manufacturer: Sensata BEI Sensors

Through-Hole position sensor


Professional and fast quote

Product usually available on stock

Check availability and GET A QUOTE by clicking the button below

  • ASK for "Just in time" delivery

More questions?


The 8360 Series is latest addition to the company’s line-up of robust, reliable, and highly accurate non-contacting position sensors. The 8360’s low profile and throughhole design make it desirable for applications like steering wheel and boom angle, where space is limited and the sensor must mount around a shaft. The sensor’s dual analog output is capable of resolving 360 degrees of motion with high accuracy and 12 bit resolution.


  • Non-contacting technology: Provides long life
  • Output signal choices: Analog, PWM, CAN Bus
  • Electrical angle: The standard version is available with rotational angles in 15 degree increments, up to 360°
  • Connector: Flying lead terminated w/6 pin AMP connector P/N 776434-1, contact P/N 1924463-1, other options available
  • Through-hole design: Fits around shaft, shaft options available
  • Environmental: IP65-protected from dust and water jets
  • Operating temperature: -30° to +85°C standard, (option for -40°C to +125°C)
  • Electrical protection: Overvoltage, short circuit, ESD
  • Magnetic Shielding to 20G


Full specifications available in the datasheet below.
