Highlights: 11 to 30 Vdc in, 10% to 90% duty cycle PWM out; Range 360°, PVC Cable, 3 Conductor; 2 m Cable length

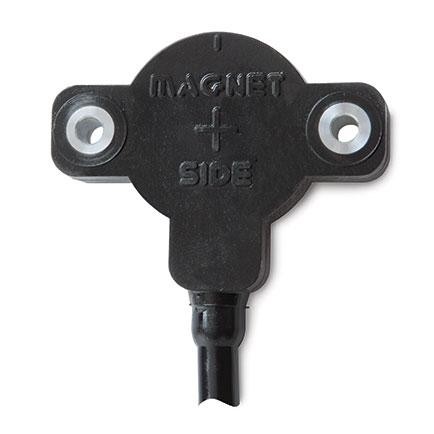

Sensata | BEI Sensors ACW4 series provide absolute single-turn measurement with a PWM output in an over-molded, two-part modular design that offers flexibility and protection from the environment.

Features

• With its two-part design, the ACW4 absolute single-turn offers maximum flexibility for installation
• Rugged and excellent resistance to shock and vibration
• Robust, proven magnetic technology
• Environmentally resistant, IP 67 standard (IP69K option)
• Extended operating range from -40° C to 85° C
• Uses universal supply 5 Vdc or 11 to 30 VDC – PWM Output
• Available Resolution up to 12 bits per revolution
• Variety of magnet holders available

Specifications
