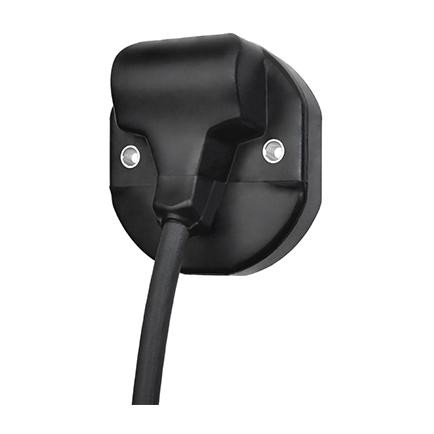

TCW4 CANopen Series

Hall Effect Sensors


  • /media/djcatalog2/images/item/11/tcw4-analog-series.1.jpg

    Manufacturer: Sensata BEI Sensors

    Absolute multi-turn measurement with a CANopen output

      • Robust, proven magnetic technology
      • Environmentally resistanct, IP 67 standard (IP69K option)
      • Extended operating range from -30° C to 85° C
      • Uses universal supply 5 to 30 VDC – CANopen output
      • Available resolution 12 bits per turn by 16 bits of turns counting
    Services
    Professional and fast quote
    Product usually available on stock

    Delivery:

    • ASK for "Just in time" delivery

    More questions?

    +39 02 3340 0846 or Contact us

    Questions?

    +39 02 3340 0846
    or Contact us

    Description

    Sensata | BEI Sensors TCW4 series provide absolute multi-turn measurement with a CANopen output in an over-molded, two-part modular design that offers flexibility and protection from the environment.

    Features

    • With its two-part design, the TCW4 CANopen absolute multi-turn offers maximum flexibility for installation
    • Rugged and excellent resistance to shock and vibration
    • Robust, proven magnetic technology
    • Environmentally resistanct, IP 67 standard (IP69K option)
    • Extended operating range from -30° C to 85° C
    • Uses universal supply 5 to 30 VDC – CANopen output
    • Available resolution 12 bits per turn by 16 bits of turns counting
    • Variety of magnet holders available
    • Standard PVC cable with SUBD9 connector

    Specifications

    Part Number Dir of Count Range [Deg/Bits] Termination Cable Length [m] Voltage
    TCW400-1216-004 Selectable 12 X 16 Bits PVC Cable with M12, 5 Pin connector 5 5 to 30 Vdc in, CANopen out
    TCW400-1216-005 Selectable 12 X 16 Bits PVC Cable with M12, 5 Pin connector 5 6 to 30 Vdc in, CANopen out
    TCW400-1216-003 Selectable 12 X 16 Bits PVC Cable with M12, 5 Pin connector 2 7 to 30 Vdc in, CANopen out
    TCW400-1216-001 Selectable 12 X 16 Bits PVC Cable with M12, 5 Pin connector 2 8 to 30 Vdc in, CANopen out
    • Select Hall effect sensor type
      Modular
