TCW4 SSI Series

Hall Effect Sensors


  • /media/djcatalog2/images/item/11/tcw4-analog-series.2.jpg

    Manufacturer: Sensata BEI Sensors

    Absolute multi-turn measurement with a SSI output

      • Robust, proven magnetic technology
      • Environmentally resistant, IP 67 standard (IP69K option)
      • Extended operating range from -20° C to 85° C
      • Uses universal supply 5 to 30 VDC – SSI Output
    Services
    Professional and fast quote
    Product usually available on stock

    Delivery:

    • ASK for "Just in time" delivery

    More questions?

    +39 02 3340 0846 or Contact us

    Questions?

    +39 02 3340 0846
    or Contact us

    Description

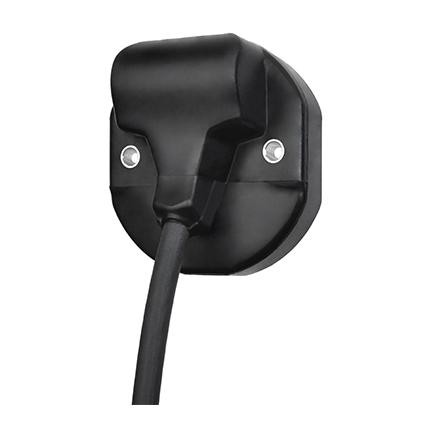

    Sensata | BEI Sensors TCW4 series provide absolute multi-turn measurement with an SSI output in an over-molded, modular package that offers design flexibility and protection from the environment.

    Features

    • With its two-part design, the TCW4 absolute multi-turn offers maximum flexibility for installation
    • Rugged and excellent resistance to shock and vibration
    • Robust, proven magnetic technology
    • Environmentally resistant, IP 67 standard (IP69K option)
    • Extended operating range from -20° C to 85° C
    • Uses universal supply 5 to 30 VDC – SSI Output
    • Available resolution 12 bits per turn and up to 13 bits of turns counting.
    • Variety of magnet holders available

    Specifications

    Part Number Dir of Count Range [Deg/Bits] Termination Cable Length [m] Voltage
    TCW400-1213-002 Gray (G) 12 X 13 Bits PUR Cable, 8 conductor 5 5 to 30 Vdc in, SSI out
    TCW400-1213-001 Gray (G) 12 X 13 Bits PUR Cable, 8 conductor 0.5 6 to 30 Vdc in, SSI out
    TCW400-1213-004 Natural Binary (B) 12 X 13 Bits PUR Cable, 8 conductor 0.5 7 to 30 Vdc in, SSI out
    TCW400-1213-005 Gray (G) 12 X 13 Bits PUR Cable, 8 conductor 10 8 to 30 Vdc in, SSI out
    • Select Hall effect sensor type
      Modular
